minneapolis moline g1050

OverviewEngineTransmissionDimensionsTestsPhotos
Minneapolis-Moline G1050 tractor photo
1969 - 1971 Row-Crop tractor
1969 - 1971
Row-Crop tractor
1969 - 1971
Row-Crop tractor
1969 - 1971
Row-Crop tractor
Tractor Tests
NTTL 953: diesel 10-speed 2WD
NTTL 954: LP gas 10-speed 2WD
Nebraska Tractor Test 953

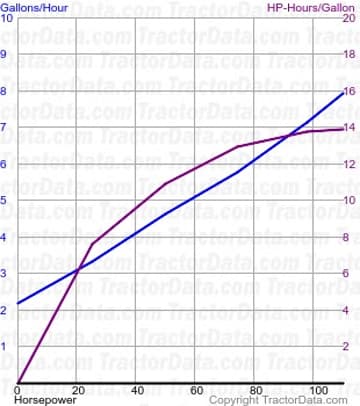

G1050 fuel use from test 953
G1050 fuel use from test 953
G1050 fuel use from test 953
G1050 fuel use from test 953
Nebraska Tractor Test 953
Diesel 10-speed 2WD November 4 - 15, 1966 Link: Nebraska Tractor Test 953 file
PTO performance
Power at rated engine speed
110.78 hp 82.6 kW
Fuel use
8.1 gal/hour 30.7 l/hour
Drawbar performance
Max power
100.99 hp 75.3 kW
Fuel use
8.3 gal/hour 31.4 l/hour
Gear 2DD used for power test.
Max pull
14,218 lbs 6449 kg
Gear 2DD used for pull test.
Nebraska Tractor Test 954

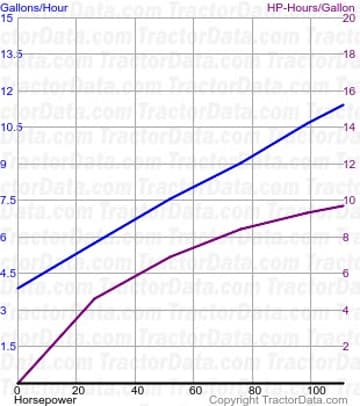

G1050 fuel use from test 954
G1050 fuel use from test 954
G1050 fuel use from test 954
G1050 fuel use from test 954
Nebraska Tractor Test 954
LP gas 10-speed 2WD November 4 - 15, 1966 Link: Nebraska Tractor Test 954 file
PTO performance
Power at rated engine speed
110.76 hp 82.6 kW
Fuel use
11.4 gal/hour 43.1 l/hour
Drawbar performance
Max power
97.37 hp 72.6 kW
Fuel use
11.5 gal/hour 43.5 l/hour
Gear 2DD used for power test.
Max pull
14,006 lbs 6353 kg
Gear 1AT used for pull test.
