minneapolis moline g706

Minneapolis-Moline G706 tractor photo
1962 - 1965 Standard-tread tractor
1962 - 1965
Standard-tread tractor
1962 - 1965
Standard-tread tractor
1962 - 1965
Standard-tread tractor
Tractor Tests
NTTL 833: diesel 5-speed 4WD
NTTL 834: LP-gas 5-speed 4WD
Nebraska Tractor Test 833

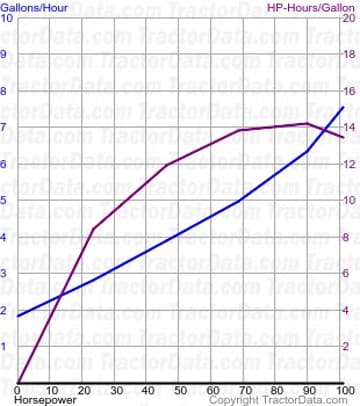

G706 fuel use from test 833
G706 fuel use from test 833
G706 fuel use from test 833
G706 fuel use from test 833
Nebraska Tractor Test 833
Diesel 5-speed 4WD April 6 - 17, 1963 Link: Nebraska Tractor Test 833 file
PTO performance
Power at rated engine speed
101.68 hp 75.8 kW
Fuel use
7.5 gal/hour 28.4 l/hour
Power at rated PTO speed
81.68 hp 60.9 kW
Fuel use
5.9 gal/hour 22.3 l/hour
Drawbar performance
Max power
87.83 hp 65.5 kW
Fuel use
7.4 gal/hour 28.0 l/hour
Gear 3 used for power test.
Max pull
11,491 lbs 5212 kg
Gear 1 used for pull test.
Nebraska Tractor Test 834

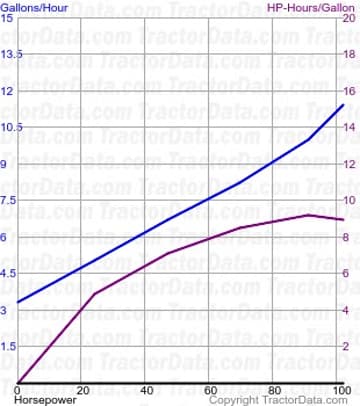

G706 fuel use from test 834
G706 fuel use from test 834
G706 fuel use from test 834
G706 fuel use from test 834
Nebraska Tractor Test 834
LP-gas 5-speed 4WD April 8 - 23, 1963 Link: Nebraska Tractor Test 834 file
PTO performance
Power at rated engine speed
101.44 hp 75.6 kW
Fuel use
11.4 gal/hour 43.1 l/hour
Power at rated PTO speed
82.29 hp 61.4 kW
Fuel use
8.9 gal/hour 33.7 l/hour
Drawbar performance
Max power
86.24 hp 64.3 kW
Fuel use
11.0 gal/hour 41.6 l/hour
Gear 3 used for power test.
Max pull
11,293 lbs 5122 kg
Gear 1 used for pull test.
