minneapolis moline gb
 | 1955 - 1959
Standard-tread tractor | 1955 - 1959 | Standard-tread tractor |
|---|---|---|---|
1955 - 1959 | |||
Standard-tread tractor | |||
1955 - 1959 | |
|---|---|
Standard-tread tractor |
Tractor Tests | |
|---|---|
NTTL 545: LP gas 5-speed 2WD | |
NTTL 547: gasoline 5-speed 2WD | |
NTTL 568: diesel 5-speed 2WD |

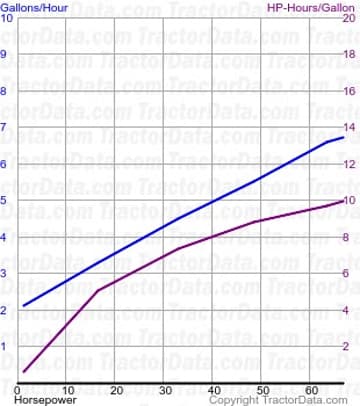

Nebraska Tractor Test 545 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 545 | |
|---|---|
LP gas 5-speed 2WD
May 31 - June 7, 1955
Link: Nebraska Tractor Test 545 file | |
Belt power (max) | 70.55 hp
52.6 kW |
Belt fuel use (max) | 7.5 gal/hour
28.4 l/hour |
Drawbar performance | |
Max power | 62.14 hp
46.3 kW |
Fuel use | 7.5 gal/hour
28.4 l/hour |
Gear 3 used for power test. | |
Max pull | 7094 lbs
3217 kg |
Gear 1 used for pull test. | |

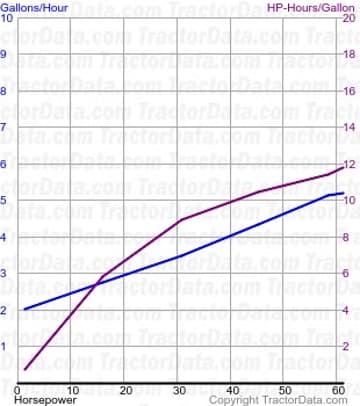

Nebraska Tractor Test 547 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 547 | |
|---|---|
Gasoline 5-speed 2WD
June 8 - 15, 1955
Link: Nebraska Tractor Test 547 file | |
Belt power (max) | 65.64 hp
48.9 kW |
Belt fuel use (max) | 6.0 gal/hour
22.7 l/hour |
Drawbar performance | |
Max power | 46.26 hp
34.5 kW |
Fuel use | 4.6 gal/hour
17.4 l/hour |
Gear 3 used for power test. | |
Max pull | 6718 lbs
3047 kg |
Gear 1 used for pull test. | |

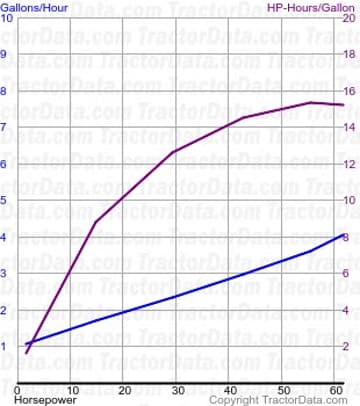

Nebraska Tractor Test 568 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 568 | |
|---|---|
Diesel 5-speed 2WD
November 1 - 7, 1955
Link: Nebraska Tractor Test 568 file | |
Belt power (max) | 62.78 hp
46.8 kW |
Belt fuel use (max) | 4.1 gal/hour
15.5 l/hour |
Drawbar performance | |
Max power | 63.70 hp
47.5 kW |
Fuel use | 4.7 gal/hour
17.8 l/hour |
Gear 3 used for power test. | |
Max pull | 7333 lbs
3326 kg |
Gear 1 used for pull test. | |
