minneapolis moline m 5

OverviewEngineTransmissionDimensionsTestsPhotos
Minneapolis-Moline M-5 tractor photo
1960 - 1963
1960 - 1963
1960 - 1963
1960 - 1963
Tractor Tests
NTTL 756: gasoline 10-speed 2WD
NTTL 757: LP gas 10-speed 2WD
NTTL 758: diesel 10-speed 2WD
Nebraska Tractor Test 756

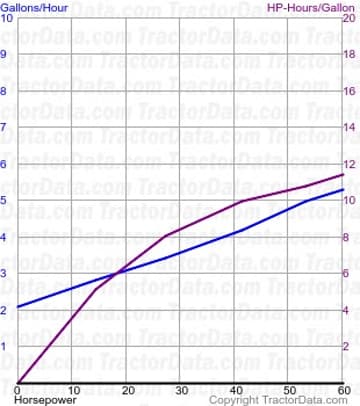

M-5 fuel use from test 756
M-5 fuel use from test 756
M-5 fuel use from test 756
M-5 fuel use from test 756
Nebraska Tractor Test 756
Gasoline 10-speed 2WD August 31 - September 10, 1960 Link: Nebraska Tractor Test 756 file
PTO performance
Power at rated engine speed
61.01 hp 45.5 kW
Fuel use
5.3 gal/hour 20.1 l/hour
Power at rated PTO speed
57.45 hp 42.8 kW
Fuel use
4.9 gal/hour 18.5 l/hour
Drawbar performance
Max power
52.51 hp 39.2 kW
Fuel use
5.5 gal/hour 20.8 l/hour
Gear 2-High used for power test.
Max pull
6,693 lbs 3035 kg
Gear 2-Low used for pull test.
Nebraska Tractor Test 757

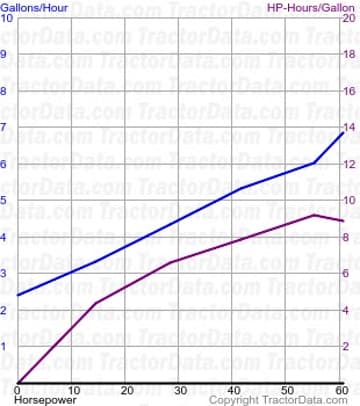

M-5 fuel use from test 757
M-5 fuel use from test 757
M-5 fuel use from test 757
M-5 fuel use from test 757
Nebraska Tractor Test 757
LP gas 10-speed 2WD August 31 - September 10, 1960 Link: Nebraska Tractor Test 757 file
PTO performance
Power at rated engine speed
61.26 hp 45.7 kW
Fuel use
6.8 gal/hour 25.7 l/hour
Power at rated PTO speed
57.34 hp 42.8 kW
Fuel use
6.2 gal/hour 23.5 l/hour
Drawbar performance
Max power
54.47 hp 40.6 kW
Fuel use
6.8 gal/hour 25.7 l/hour
Gear 2-High used for power test.
Max pull
6,802 lbs 3085 kg
Gear 1-High used for pull test.
Nebraska Tractor Test 758

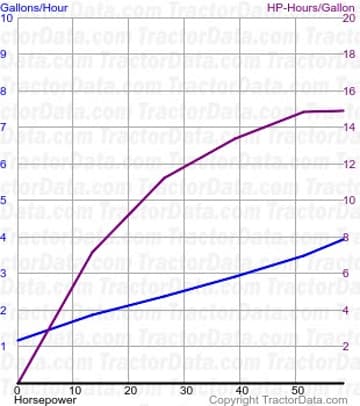

M-5 fuel use from test 758
M-5 fuel use from test 758
M-5 fuel use from test 758
M-5 fuel use from test 758
Nebraska Tractor Test 758
Diesel 10-speed 2WD August 6 - September 10, 1960 Link: Nebraska Tractor Test 758 file
PTO performance
Power at rated engine speed
58.15 hp 43.4 kW
Fuel use
3.8 gal/hour 14.4 l/hour
Power at rated PTO speed
53.82 hp 40.1 kW
Fuel use
3.5 gal/hour 13.2 l/hour
Drawbar performance
Max power
51.37 hp 38.3 kW
Fuel use
3.9 gal/hour 14.8 l/hour
Gear 2-High used for power test.
Max pull
6,751 lbs 3062 kg
Gear 2-Low used for pull test.
