MTD 998

The MTD 998 is a tractor produced by Mtd Lawn Tractors. It is equipped with a 569 cc 34.75 ci engine. The listed engine power is Gasoline (listed): 18 hp / 13.4 kW. Transmission: Eaton.

Engine Power
Gasoline (listed): 18 hp / 13.4 kW
Fuel & Capacities
Gasoline
Transmission
Eaton

Overview

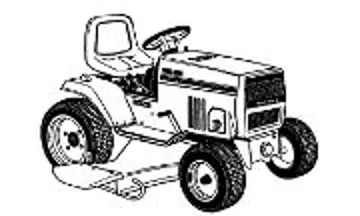

MTD 998 tractor photo
1993 - 1995 900 SeriesGarden tractor 900 Series Garden tractor
Production
Manufacturer
MTD
Garden tractor
MTD 998 Engine
18HP Briggs & Stratton 569cc 2-cyl gasoline
Engine details ...
MTD 998 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Tractor hitch
Rear Type
0 OptOptional
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 569 cc / 34.75 ci Gasoline

Manufacturer
Briggs & Stratton 350447
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement
569 cc 34.75 ci
Bore/Stroke
2.83x2.75 inches 72 x 70 mm
Power
18 hp 13.4 kW
Starter
electric
Starter volts
12
MTD 998 Engine

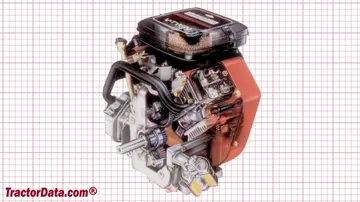

MTD 998 engine image

Transmission

Transmission — Eaton

Transmission
Eaton
Type
shaft-driven hydrostatic
Gears
infinite forward and reverse (2-range)
998 shaft-driven hydrostatic speeds

Dimensions

MTD 998 Tires
Dimensions

Attachments

50" Mower deck
Type
mid-mount MTD
3-blade with hydraulic lift
Cutting width
50 inches 127 cm

Photos

MTD 998 tractor photo

MTD 998 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Mtd Lawn Tractors MTD 998 based on its 18 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mtd Lawn Tractors MTD 998.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Mtd Lawn Tractors MTD 998 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Mtd Lawn Tractors MTD 998.

Converted Equivalents:

Horsepower (HP)18 hp
Kilowatts (kW)13.4 kW
Metric Horsepower (PS / CV)18.2 PS
