New Holland 1215

The New Holland 1215 is a tractor produced by New Holland. It is equipped with a 53.6 ci 0.9 L engine. The rated power output is 14 hp 10.4 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1292 to 1360 pounds.

Overview

	1996 - 1998 15 Compact SeriesCompact Utility tractorShibaura built
1996 - 1998
15 Compact Series
Compact Utility tractor
Shibaura built

1996 - 1998
15 Compact Series
Compact Utility tractor
Shibaura built

Series map: 1215171516.0hp27.3hp1215↓ 1993-1998

Note: the New Holland model 1215 is the same as the Ford 1215. The following data is from the 1215 listing.

Production
Distributor	New Holland
Manufacturer	Shibaura
Compact Utility tractor
Built in Japan
Original price was $9,000 in 1998

New Holland 1215 Engine
Shibaura 0.9L 3-cyl diesel
Fuel tank	4.8 gal 18.2 L
Engine details ...

New Holland 1215 Power
Engine (gross)	16 hp 11.9 kW
Engine (net)	14 hp 10.4 kW
Gear PTO (claimed)	13.5 hp 10.1 kW
Hydro PTO (claimed)	13 hp 9.7 kW

Mechanical
Two- or four-wheel drive
Manual steering
Wet disc brakes
Two-post fixed ROPS.

Hydraulics
Type	open center
Pump flow	3.9 gpm 14.8 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	1474 lbs 668 kg
Rear lift (at 24"/610mm)	1265 lbs 573 kg

Power Take-off (PTO)
Gear Rear PTO	transmission
Hydro Rear PTO	live
Rear PTO Type	540
Mid PTO	optional
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	55.3 inches 140 cm
Weight	1292 to 1360 pounds
Front tire	4.00x12
2WD Rear tire	8x16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Compact Diesel Tractors published in 1996, by New Holland
North American Buyer's Guide published in 1997, by New Holland

Engine

	1996 - 1998 15 Compact SeriesCompact Utility tractorShibaura built
1996 - 1998
15 Compact Series
Compact Utility tractor
Shibaura built

1996 - 1998
15 Compact Series
Compact Utility tractor
Shibaura built

Series map: 1215171516.0hp27.3hp1215↓ 1993-1998

Note: the New Holland model 1215 is the same as the Ford 1215. The following data is from the 1215 listing.

Engine Detail — 53.6 ci / 0.9 L Diesel

Manufacturer	Shibaura S723
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	53.6 ci 0.9 L
Bore/Stroke	2.83x2.83 inches 72 x 72 mm
Power (net)	14 hp 10.4 kW
Power (gross)	16 hp 11.9 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

	1996 - 1998 15 Compact SeriesCompact Utility tractorShibaura built
1996 - 1998
15 Compact Series
Compact Utility tractor
Shibaura built

1996 - 1998
15 Compact Series
Compact Utility tractor
Shibaura built

Series map: 1215171516.0hp27.3hp1215↓ 1993-1998

Note: the New Holland model 1215 is the same as the Ford 1215. The following data is from the 1215 listing.

Transmission options
hydrostatic
6-speed gear

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Three gears (1-3), plus reverse (R), in two ranges (L/H).

Dimensions

	1996 - 1998 15 Compact SeriesCompact Utility tractorShibaura built
1996 - 1998
15 Compact Series
Compact Utility tractor
Shibaura built

1996 - 1998
15 Compact Series
Compact Utility tractor
Shibaura built

Series map: 1215171516.0hp27.3hp1215↓ 1993-1998

Note: the New Holland model 1215 is the same as the Ford 1215. The following data is from the 1215 listing.

New Holland 1215 Tires
2WD Standard tires (ag)	Front: 4.00x12. Rear: 8x16
4WD Standard tires (ag)	Front: 5x12. Rear: 8x16

Dimensions
Wheelbase	55.3 inches 140 cm
Length	106.3 inches 270 cm
Width	40.9 inches 103 cm
Height (ROPS)	80.3 inches 203 cm
2WD Shipping weight	1292 lbs 586 kg
4WD Shipping weight	1360 lbs 616 kg
2WD Ground clearance	10.1 inches 25 cm
4WD Ground clearance	9.6 inches 24 cm
2WD Front tread	33.6 to 35.4 inches 85 to 89 cm
4WD Front tread	32.3 inches 82 cm
Rear tread	33.5 to 39.3 inches 85 to 99 cm

Attachments

	1996 - 1998 15 Compact SeriesCompact Utility tractorShibaura built
1996 - 1998
15 Compact Series
Compact Utility tractor
Shibaura built

1996 - 1998
15 Compact Series
Compact Utility tractor
Shibaura built

Series map: 1215171516.0hp27.3hp1215↓ 1993-1998

Note: the New Holland model 1215 is the same as the Ford 1215. The following data is from the 1215 listing.

Attachment overview
48" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe

Ford 756B Backhoe
Backhoe type	Ford 756B Backhoe
Transport height	57.5 inches 146 cm
2-Foot flat digging depth	78 inches 198 cm
8-Foot flat digging depth	51.5 inches 130 cm
Loading height	57.5 inches 146 cm
Bucket Rotation	180°
Bucket force	1925 lbs 873 kg
Dipperstick force	900 lbs 408 kg

Photos

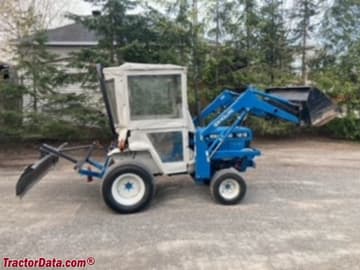

New Holland 1215
