New Holland 1920

The New Holland 1920 is a tractor produced by New Holland. It is equipped with a 121.7 ci 2.0 L engine. The rated power output is 32 hp 23.9 kW. Transmission: 12 forward and reverse. Operating weight: 2849 to 3069 pounds.

Overview

	1996 - 2000 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 17201920212027.7hp33.3hp42.6hp1920↓ 1987-1995

Note: the New Holland model 1920 is the same as the Ford 1920. The following data is from the 1920 listing.

Production
Distributor	New Holland
Manufacturer	Shibaura
Compact Utility tractor
Built in Japan
Original price was $15,500 in 2000

New Holland 1920 Engine
Shibaura 2.0L 4-cyl diesel
Engine details ...

New Holland 1920 Power
Engine (gross)	33.3 hp 24.8 kW
Engine (net)	32 hp 23.9 kW
PTO (claimed)	28.5 hp 21.3 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS.

Capacity
Fuel	9.8 gal 37.1 L
Hydraulic system	7.7 gal 29.1 L

Hydraulics
Type	open center
Capacity	7.7 gal 29.1 L
Pump flow	7.8 gpm 29.5 lpm
Total flow	10.6 gpm 40.1 lpm
Steering flow	2.8 gpm 10.6 lpm

Tractor hitch
Rear Type	I
Control	draft control OptOptional
Rear lift (at 24"/610mm)	1881 lbs 853 kg

Power Take-off (PTO)
Rear PTO	transmission
	live OptOptional
Rear PTO Type	540

Dimensions & Tires
Wheelbase	69.9 inches 177 cm
Weight	2849 to 3069 pounds
Front tire	5.50-16
2WD Rear tire	13.6-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Compact Diesel Tractors published in 1996, by New Holland
North American Buyer's Guide published in 1997, by New Holland

Engine

	1996 - 2000 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 17201920212027.7hp33.3hp42.6hp1920↓ 1987-1995

Note: the New Holland model 1920 is the same as the Ford 1920. The following data is from the 1920 listing.

Engine Detail — 121.7 ci / 2.0 L Diesel

Manufacturer	Shibaura N844
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	121.7 ci 2.0 L
Bore/Stroke	3.307x3.543 inches 84 x 90 mm
Power (net)	32 hp 23.9 kW
Power (gross)	33.3 hp 24.8 kW
Compression	19:1
Rated RPM	2500
Firing order	1-3-4-2
Starter	electric
Starter volts	12
Coolant capacity	5.9 qts 5.6 L

Transmission

	1996 - 2000 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 17201920212027.7hp33.3hp42.6hp1920↓ 1987-1995

Note: the New Holland model 1920 is the same as the Ford 1920. The following data is from the 1920 listing.

Transmission options
12-speed gear
12-speed mechanical shuttle

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
Three gears (1-3) plus reverse (R) in four ranges.

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Four synchronized gears in four ranges, with mechanical shuttle shifting.

Dimensions

	1996 - 2000 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 17201920212027.7hp33.3hp42.6hp1920↓ 1987-1995

Note: the New Holland model 1920 is the same as the Ford 1920. The following data is from the 1920 listing.

New Holland 1920 Tires
2WD Standard tires (ag)	Front: 5.50-16. Rear: 13.6-24
4WD Standard tires (ag)	Front: 7-16. Rear: 13.6-24
Lawn/turf front	25x8.50-14
Lawn/turf rear	27x8.50-15

Dimensions
Wheelbase	69.9 inches 177 cm
Length	126.4 inches 321 cm
Width	58.5 inches 148 cm
Height (ROPS)	90 inches 228 cm
2WD Shipping weight	2849 lbs 1292 kg
4WD Shipping weight	3069 lbs 1392 kg
Ground clearance	12.6 inches 32 cm
2WD Front tread	43.1 to 57 inches 109 to 144 cm
4WD Front tread	45.5 inches 115 cm
Rear tread	45.7 to 61 inches 116 to 154 cm

Attachments

	1996 - 2000 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 17201920212027.7hp33.3hp42.6hp1920↓ 1987-1995

Note: the New Holland model 1920 is the same as the Ford 1920. The following data is from the 1920 listing.

Attachment overview
72" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe

72" Mower deck
Type	mid-mount Ford 914
	3-blade
Cutting width	72 inches 182 cm

Ford 758B Backhoe
Backhoe type	Ford 758B Backhoe
Transport height	78 inches 198 cm
2-Foot flat digging depth	102 inches 259 cm
8-Foot flat digging depth	83 inches 210 cm
Loading height	78.5 inches 199 cm
Bucket Rotation	177°
Bucket force	2875 lbs 1304 kg
Dipperstick force	1710 lbs 775 kg

Photos

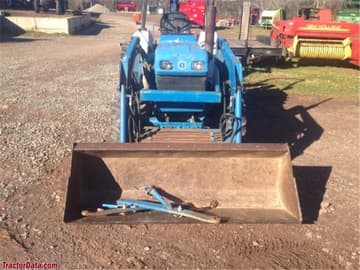

New Holland 1920
