New Holland 3010

The New Holland 3010 is a tractor produced by New Holland. It is equipped with a 164.8 ci 2.7 L engine. The rated power output is 55 hp 41.0 kW. Transmission: 8 forward and 2 reverse. Operating weight: 4956 to 5705 pounds.

Overview

	1996 - 2003 Utility tractor
1996 - 2003
Utility tractor

Production
Manufacturer	New Holland
Utility tractor
Built in Queretaro, Mexico

New Holland 3010 Engine
New Holland 2.7L 3-cyl diesel
Engine details ...

New Holland 3010 Transmission
8-speed constant mesh
Transmission details ...

New Holland 3010 Power
Engine	55 hp 41.0 kW
PTO (claimed)	42 hp 31.3 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS.

Capacity
Fuel	15.8 gal 59.8 L
2WD Hydraulic system	8.5 gal 32.2 L
4WD Hydraulic system	8.2 gal 31.0 L
Steering	1.8 qts 1.7 L
Front axle	5.8 qts 5.5 L
Front hubs	1.3 qts (each) 1.2 L

Hydraulics
Type	gear pump
2WD Capacity	8.5 gal 32.2 L
4WD Capacity	8.2 gal 31.0 L
Pressure	2750 psi 189.6 bar
Pump flow	8.6 gpm 32.6 lpm
Steering flow	4.0 gpm 15.1 lpm
Steering cap.	1.8 qts 1.7 L
Steering press.	1450 psi 100.0 bar

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	79.1 inches 200 cm
Weight	4956 to 5705 pounds
Front tire	7.50-16
2WD Rear tire	14.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Charging volts	12
Battery volts	12
Battery AH	107

References
North American Buyer's Guide published in 1997, by New Holland

Engine

Engine Detail — 164.8 ci / 2.7 L Diesel

Manufacturer	New Holland
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	164.8 ci 2.7 L
Bore/Stroke	3.94x4.53 inches 100 x 115 mm
Power	55 hp 41.0 kW
Compression	17:1
Rated RPM	2500
Idle RPM	650-2800
Firing order	1-2-3
Starter volts	12
Oil capacity	7.7 qts 7.3 L
Coolant capacity	11.6 qts 11.0 L
Intake valve clearance	0.010 inches (cold) 0.254 mm
Exhaust valve clearance	0.014 inches (cold) 0.356 mm

Transmission

Transmission — 8 forward and 2 reverse constant mesh

Type	constant mesh
Gears	8 forward and 2 reverse
2WD Oil capacity	34 qts 32.2 L
4WD Oil capacity	32.8 qts 31.0 L

Dimensions

New Holland 3010 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 14.9-28
	Front: 9.5-24. Rear: 14.9-28

Dimensions
Wheelbase	79.1 inches 200 cm
2WD Length	136 inches 345 cm
4WD Length	126 inches 320 cm
2WD Width	75 inches 190 cm
4WD Width	79.1 inches 200 cm
2WD Operating weight	4,956 lbs 2248 kg
4WD Operating weight	5,705 lbs 2587 kg
2WD Clearance (front axle)	17.5 inches 44 cm
4WD Clearance (front axle)	15 inches 38 cm
2WD Clearance (drawbar)	16 inches 40 cm
4WD Clearance (drawbar)	16.3 inches 41 cm

New Holland 3010 Height
2WD Hood	60.5 inches 153 cm
4WD Hood	57.6 inches 146 cm
2WD ROPS	91.3 inches 231 cm
4WD ROPS	92.45 inches 234 cm
2WD Exhaust	100 inches 254 cm
4WD Exhaust	100.6 inches 255 cm

Photos

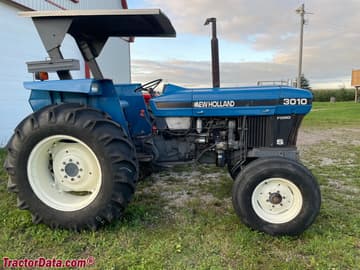

New Holland (Ford) 3010S, right side.

New Holland (Ford) 3010S.

New Holland (Ford) 3010S.

New Holland (Ford) 3010S with mower, right-rear view.
