New Holland 3415
The New Holland 3415 is a tractor produced by New Holland. It is equipped with a 135 ci 2.2 L engine. The listed engine power is Diesel (listed): 44 hp / 32.8 kW. Transmission: 12 forward and 4 reverse. Operating weight: 4,100 lbs 1859 kg.
Engine Power
Diesel (listed): 44 hp / 32.8 kW
Fuel & Capacities
11.1 gal
42.0 L
Transmission
12 forward and 4 reverse
Operating Weight
4,100 lbs
1859 kg
Overview
 | 1996 - 2003
Compact Utility tractorShibaura built
Compact Utility tractor
Shibaura built |
|---|
Series map: 341544.0hp3415↓ 1993-1995
Note: the New Holland model 3415 is the same as the Ford 3415. The following data is from the 3415 listing. |
Production | |
|---|---|
Distributor | New Holland |
Manufacturer | Shibaura |
Compact Utility tractor | |
Built in Japan | |
Original price was $17,900 in 2000 | |
New Holland 3415 Engine | |
|---|---|
Shibaura 2.2L 4-cyl diesel | |
Fuel tank | 11.1 gal
42.0 L |
Engine details ...  | |
New Holland 3415 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
New Holland 3415 Power | |
|---|---|
Engine | 44 hp
32.8 kW |
PTO (claimed) | 38 hp
28.3 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Two-post ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 6.5 gpm
24.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 3,470 lbs
1573 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 74.8 inches
189 cm |
Weight | 4,100 lbs
1859 kg |
Front tire | 6.00-16 |
Rear tire | 13.6-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Compact Diesel Tractors published in 1996, by New Holland | |
North American Buyer's Guide published in 1997, by New Holland |
Engine
Series map: 341544.0hp3415↓ 1993-1995
Note: the New Holland model 3415 is the same as the Ford 3415. The following data is from the 3415 listing. |
Engine Detail — 135 ci / 2.2 L Diesel
Manufacturer | Shibaura |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 135 ci
2.2 L |
Power | 44 hp
32.8 kW |
Starter volts | 12 |
Transmission
Series map: 341544.0hp3415↓ 1993-1995
Note: the New Holland model 3415 is the same as the Ford 3415. The following data is from the 3415 listing. |
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Dimensions
Series map: 341544.0hp3415↓ 1993-1995
Note: the New Holland model 3415 is the same as the Ford 3415. The following data is from the 3415 listing. |
New Holland 3415 Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 13.6-28 |
Dimensions | |
|---|---|
Wheelbase | 74.8 inches
189 cm |
Weight | 4,100 lbs
1859 kg |
Photos

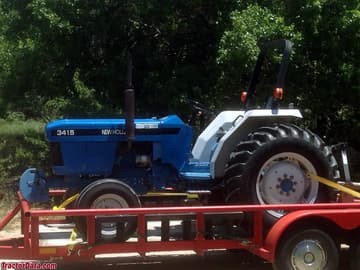

New Holland 3415
New Holland 3415
Recommended Implements & Sizing Guide
Engineering recommendations for New Holland 3415 based on its 44 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland 3415.
Estimated Continuous Field Runtime: 4.9 hrs
Approximately 4.9 hours of continuous field operation at ~75% rated power on a full tank (11.1 gal / 42 L).
Estimated 75% Load Fuel Burn~2.3 gal/hr (8.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
New Holland 3415 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for New Holland 3415.
Converted Equivalents:
Horsepower (HP)44 hp
Kilowatts (kW)32.8 kW
Metric Horsepower (PS / CV)44.6 PS
Direct Competitor Comparison
Compare New Holland 3415 against same-era industry alternatives in the same horsepower class.
Current Model
New Holland
New Holland 3415
Engine Power:Diesel (listed): 44 hp / 32.8 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 383
Engine Power:40
Production Years:1982 - 1984
