new holland 3430

New Holland 3430 tractor photo
1990 - 1998 30 SeriesUtility tractor
1990 - 1998
30 Series
Utility tractor
1990 - 1998
30 Series
Utility tractor
1990 - 1998
30 Series
Utility tractor

Series map: 3430393046.0hp50.0hp**Estimated engine power for comparison only.

Note: the New Holland model 3430 is the same as the Ford 3430. The following data is from the 3430 listing.
OCED Tractor Test 1643

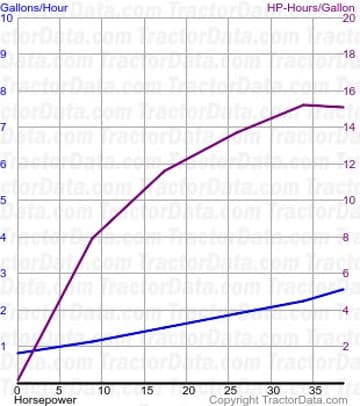

3430 fuel use from test 081
3430 fuel use from test 081
3430 fuel use from test 081
3430 fuel use from test 081
OCED Tractor Test 1643
Diesel 8x2 speed 4WD April 16 - 25, 1991 Link: OCED Tractor Test 1643 file
PTO performance
Power at rated engine speed
38.48 hp 28.7 kW
Fuel use
2.5 gal/hour 9.5 l/hour
Power at rated PTO speed
36.92 hp 27.5 kW
Fuel use
2.4 gal/hour 9.1 l/hour
Drawbar performance
Max power
31.66 hp 23.6 kW
Fuel use
2.5 gal/hour 9.5 l/hour
Gear 1H used for power test.
Max pull
4,577 lbs 2076 kg
Gear 2L used for pull test.
