New Holland 3830

The New Holland 3830 is a tractor produced by New Holland. It is equipped with a 165 ci 2.7 L engine. The rated power output is 55 hp 41.0 kW. Transmission: 12 forward and reverse. Operating weight: 3851 to 4035 pounds.

Overview

	1992 - 1999 Orchard/Vineyard tractor
1992 - 1999
Orchard/Vineyard tractor

Production
Manufacturer	New Holland
Orchard/Vineyard tractor
Original price was $23,200 in 1999

New Holland 3830 Engine
Iveco 2.7L 3-cyl diesel
Fuel tank	11.9 gal 45.0 L
Engine details ...

New Holland 3830 Transmission
12-speed mechanical shuttle
Transmission details ...

New Holland 3830 Power
Engine	55 hp 41.0 kW
PTO (claimed)	45 hp 33.6 kW

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	mechanical rear
Power steering
Mechanical wet disc brakes
Two-post mid-mount ROPS. Cab optional.

Hydraulics
Type	open center
Pressure	2740 psi 188.9 bar
Valves	2
Pump flow	11 gpm 41.6 lpm
Steering flow	8.1 gpm 30.7 lpm
Steering press.	1015 psi 70.0 bar

Tractor hitch
Rear Type	I
Control	position control and lower-link draft sensing
Rear lift	4321 lbs 1960 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
Rear PTO Type	540 (1.375)

Dimensions & Tires
2WD Wheelbase	72.6 inches 184 cm
4WD Wheelbase	75.5 inches 191 cm
Weight	3851 to 4035 pounds
Front tire	5.50-16
2WD Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	33
Cab Charging amps	65
Battery volts	12

References
New Holland Narrow Tractors 45 and 62 HP published in 1998
North American Buyer's Guide published in 1997, by New Holland

Engine

Engine Detail — 165 ci / 2.7 L Diesel

Manufacturer	Iveco
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	165 ci 2.7 L
Power	55 hp 41.0 kW
Compression	17:1
Rated RPM	2500
Firing order	1-2-3
Starter	electric
Starter volts	12
Oil capacity	7.7 qts 7.3 L
Coolant capacity	12.7 qts 12.0 L

Transmission

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Clutch	254mm dry disc
Oil capacity	45.1 qts 42.7 L
Four synchronized gears in three ranges with synchronized mechanical shuttle.

Dimensions

New Holland 3830 Tires
2WD Standard tires (ag)	Front: 5.50-16. Rear: 11.2-24
4WD Standard tires (ag)	Front: 6.00-16. Rear: 11.2-24

Dimensions
2WD Wheelbase	72.6 inches 184 cm
4WD Wheelbase	75.5 inches 191 cm
2WD Length	128.9 inches 327 cm
4WD Length	129.5 inches 328 cm
Width	49 inches 124 cm
2WD Weight	3851 lbs 1746 kg
4WD Weight	4035 lbs 1830 kg
2WD Clearance (front axle)	14.6 inches 37 cm
4WD Clearance (front axle)	8.3 inches 21 cm

New Holland 3830 Height
2WD Steering wheel	51.9 inches 131 cm
4WD Steering wheel	50 inches 127 cm
2WD Hood	46.5 inches 118 cm
4WD Hood	44.7 inches 113 cm
2WD ROPS	82 inches 208 cm
4WD ROPS	80.6 inches 204 cm

Photos

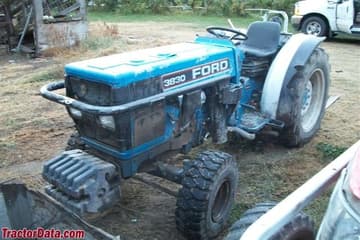

New Holland 3830
