New Holland 4630

The New Holland 4630 is a tractor produced by New Holland. It is equipped with a 192 ci 3.1 L engine. The rated power output is 60 hp 44.7 kW. Transmission: Dual-Power. Operating weight: 5194 to 6062 pounds.

Overview

	1994 - 1999 30 SeriesUtility tractor
1994 - 1999
30 Series
Utility tractor

Series map: 39304630503050.0hp*60.0hp68.9hp*4630↓ 1990-1993*Estimated engine power for comparison only.

Note: the New Holland model 4630 is the same as the Ford 4630. The following data is from the 4630 listing.

Production
Manufacturer	New Holland
Utility tractor
Original price	$26,200 (1999 2WD )
	$31,700 (1999 4WD )

New Holland 4630 Power
Engine	60 hp 44.7 kW
PTO (claimed)	55 hp 41.0 kW
Drawbar (tested)	48.54 hp 36.2 kW
PTO (tested)	56.82 hp 42.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post ROPS. Cab optional.

Hydraulics
Type	open center
	closed center OptOptional
Pressure	2500 psi 172.4 bar
Valves	1 to 2 (Open center)
	1 to 4 (closed center)
Pump flow	8.5 gpm 32.2 lpm
	14.1 gpmOptOptional 53.4 lpm
Steering flow	3.6 gpm 13.6 lpm

Tractor hitch
Rear Type	II/I
Control	position control with top link draft sensing
Rear lift	3080 lbs 1397 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
Engine RPM	540@1800
	540@1755 (shuttle)

Dimensions & Tires
2WD Wheelbase	84.5 inches 214 cm
4WD Wheelbase	84.1 inches 213 cm
Weight	5194 to 6062 pounds
Front tire	7.50-15
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	55 (early)
ROPS Charging amps	45 (late)
Cab Charging amps	70
Battery CCA	800
Battery volts	12

References
Ford 30 Series published in 1995, by New Holland
30 Series Utility Tractors published in 1997, by New Holland
North American Buyer's Guide published in 1997, by New Holland

Engine

Series map: 39304630503050.0hp*60.0hp68.9hp*4630↓ 1990-1993*Estimated engine power for comparison only.

Note: the New Holland model 4630 is the same as the Ford 4630. The following data is from the 4630 listing.

Engine options
Ford 3.3L 3-cyl diesel
Ford 3.1L 3-cyl diesel

Engine Detail — 201 ci / 3.3 L Diesel

Manufacturer	Ford
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Original, naturally-aspirated, engine used until 1995.
Displacement	201 ci 3.3 L
Bore/Stroke	4.40x4.40 inches 112 x 112 mm
Power	60 hp 44.7 kW
Compression	16.3:1
Rated RPM	2200
Starter volts	12
Coolant capacity	11.2 qts 10.6 L

Engine Detail — 192 ci / 3.1 L Diesel

Manufacturer	Ford
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled, Turbocharged engine introduced on the 4630 in 1995, tractor serial number BD81699.
Displacement	192 ci 3.1 L
Bore/Stroke	4.40x4.20 inches 112 x 107 mm
Compression	16.1:1
Rated RPM	2200
Starter volts	12

Transmission

Series map: 39304630503050.0hp*60.0hp68.9hp*4630↓ 1990-1993*Estimated engine power for comparison only.

Note: the New Holland model 4630 is the same as the Ford 4630. The following data is from the 4630 listing.

Transmission options
8-speed gear
8-speed synchronized shuttle
16-speed partial power shift

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
Clutch	dry disc

Transmission — 8 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	8 forward and reverse
Clutch	dry disc

Transmission — Dual-Power

Transmission	Dual-Power
Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	dry disc
Dual-Power provides a push-button power shift between direct drive and a lower range.

Dimensions

Series map: 39304630503050.0hp*60.0hp68.9hp*4630↓ 1990-1993*Estimated engine power for comparison only.

Note: the New Holland model 4630 is the same as the Ford 4630. The following data is from the 4630 listing.

New Holland 4630 Tires
Ag front	7.50-15
Ag rear	13.6-28

Dimensions
2WD Wheelbase	84.5 inches 214 cm
4WD Wheelbase	84.1 inches 213 cm
Length	139 inches 353 cm
Width	69.5 inches*Minimum width across fenders. 176 cm
Ground clearance	13.5 inches 34 cm

New Holland 4630 Weight
2WD ROPS Shipping	5194 lbs 2355 kg
4WD ROPS Shipping	6062 lbs 2749 kg
4WD ROPS Operating	5680 lbs 2576 kg

New Holland 4630 Height
ROPS	98.5 inches 250 cm
Cab	99.4 inches 252 cm
Exhaust	93.1 inches 236 cm

Tests

Series map: 39304630503050.0hp*60.0hp68.9hp*4630↓ 1990-1993*Estimated engine power for comparison only.

Note: the New Holland model 4630 is the same as the Ford 4630. The following data is from the 4630 listing.

Tractor Tests
OECD 1645: 3.3L diesel 8-speed 4WD
OECD 1703: 3.1L diesel 16-speed 4WD

OCED Tractor Test 1645
3.3L diesel 8-speed 4WD April 30 - May 3, 1991 Link: OCED Tractor Test 1645 file
PTO performance
Power at rated engine speed	55.41 hp 41.3 kW
Fuel use	3.7 gal/hour 14.0 l/hour
Power at rated PTO speed	50.77 hp 37.9 kW
Fuel use	3.2 gal/hour 12.1 l/hour
Drawbar performance
Max power	46.47 hp 34.7 kW
Fuel use	3.7 gal/hour 14.0 l/hour
Gear 2H used for power test.
Max pull	4,833 lbs 2192 kg
Gear 3L used for pull test.

OCED Tractor Test 1703
3.1L diesel 16-speed 4WD October 23 - 27, 1995 Link: OCED Tractor Test 1703 file
PTO performance
Power at rated engine speed	56.82 hp 42.4 kW
Fuel use	3.7 gal/hour 14.0 l/hour
Power at rated PTO speed	53.12 hp 39.6 kW
Fuel use	3.2 gal/hour 12.1 l/hour
Drawbar performance
Max power	48.54 hp 36.2 kW
Fuel use	3.7 gal/hour 14.0 l/hour
Gear 6L used for power test.
Max pull	5,672 lbs 2572 kg
Gear 3L used for pull test.

Attachments

Series map: 39304630503050.0hp*60.0hp68.9hp*4630↓ 1990-1993*Estimated engine power for comparison only.

Note: the New Holland model 4630 is the same as the Ford 4630. The following data is from the 4630 listing.

Attachment overview
Ford 7209 loader
Ford 7210 loader
Ford 7310 loader
Ford 7410 loader

Photos

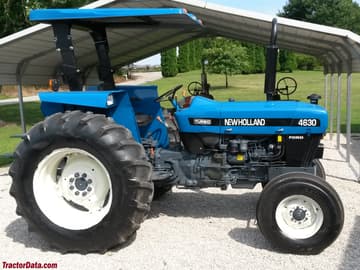

Late-model New Holland 4630 with turbocharged engine.

Early New Holland 4630 with Great Bend loader.

Early New Holland 4630 with Great Bend loader.
