new holland 5030

New Holland 5030 tractor photo
1992 - 1998 30 SeriesUtility tractor
1992 - 1998
30 Series
Utility tractor
1992 - 1998
30 Series
Utility tractor
1992 - 1998
30 Series
Utility tractor

Series map: 4630503060.0hp68.9hp**Estimated engine power for comparison only.

Note: the New Holland model 5030 is the same as the Ford 5030. The following data is from the 5030 listing.
OCED Tractor Test 1704

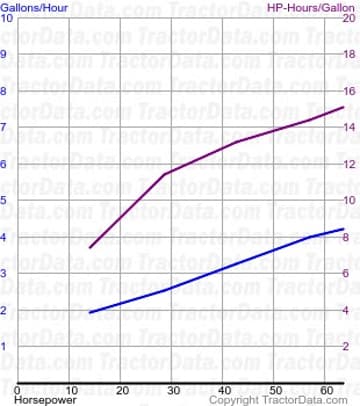

5030 fuel use from test 192
5030 fuel use from test 192
5030 fuel use from test 192
5030 fuel use from test 192
OCED Tractor Test 1704
Diesel 16-speed 4WD October 4 - 25, 1995 Link: OCED Tractor Test 1704 file
PTO performance
Power at rated engine speed
63.56 hp 47.4 kW
Fuel use
4.2 gal/hour 15.9 l/hour
Power at rated PTO speed
56.17 hp 41.9 kW
Fuel use
3.6 gal/hour 13.6 l/hour
Drawbar performance
Max power
53.84 hp 40.1 kW
Fuel use
4.2 gal/hour 15.9 l/hour
Gear 6L used for power test.
Max pull
7,762 lbs 3520 kg
Gear 3L used for pull test.
