New Holland 8970A
The New Holland 8970A is a tractor produced by New Holland. It is equipped with a 456 ci 7.5 L engine. Transmission: 16 forward and 9 reverse. Operating weight: 17250 to 19590 pounds.
Fuel & Capacities
110 gal
416.4 L
Transmission
16 forward and 9 reverse
Operating Weight
17250 to 19590 pounds
New Holland 8970A Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2001 - 2003
70A SeriesRow-Crop tractor |
|---|---|
2001 - 2003 | |
70A Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | New Holland |
Row-Crop tractor | |
New Holland 8970A Engine | |
|---|---|
New Holland 7.5L 6-cyl diesel | |
Engine details ...  |
New Holland 8970A Transmission | |
|---|---|
16-speed full power shift | |
Transmission details ...  |
New Holland 8970A Power | |
|---|---|
PTO (claimed) | 210 hp
156.6 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic |
Power steering | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 110 gal
416.4 L |
Hydraulic system | 37 gal
140.0 L |
Hydraulics | |
|---|---|
Type | closed center load-sensing |
Capacity | 37 gal
140.0 L |
Pressure | 3000 psi
206.8 bar |
Valves | 3 or 4 |
Pump flow | 31 gpm
117.3 lpm |
55 gpmOptOptional
208.2 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III |
Control | electronic draft sensing |
Rear lift | 14811 lbs
6718 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | wet disc |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 118.3 inches
300 cm |
4WD Wheelbase | 118.3 inches
300 cm |
SuperSteer Wheelbase | 122.6 inches
311 cm |
Weight | 17250 to 19590 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 130 |
Batteries | 2 |
Battery CCA | 850 |
Battery volts | 12 |
References | |
|---|---|
 | |
New Holland 70A 145 to 210 PTO hp Tractors published in 2001 |
Engine
Engine Detail — 456 ci / 7.5 L Diesel
Manufacturer | New Holland |
Configuration | turbocharged intercooled diesel, 6-cylinder, liquid-cooled |
Displacement | 456 ci
7.5 L |
Bore/Stroke | 4.40x5.00 inches
112 x 127 mm |
Compression | 17.5:1 |
Rated RPM | 2100 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 22.5 qts
21.3 L |
Coolant capacity | 28 qts
26.5 L |
Transmission

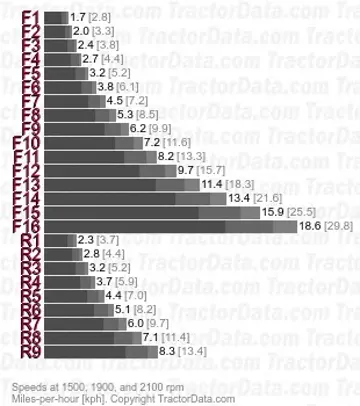

Transmission — 16 forward and 9 reverse full power shift
Type | full power shift |
Gears | 16 forward and 9 reverse |
With 18.4-42 rear tires. | |
 | |
Dimensions
New Holland 8970A Tires |
|---|
Dimensions | |
|---|---|
2WD Wheelbase | 118.3 inches
300 cm |
4WD Wheelbase | 118.3 inches
300 cm |
SuperSteer Wheelbase | 122.6 inches
311 cm |
Length | 212 inches
538 cm |
Height (cab) | 122 inches
309 cm |
Height (exhaust) | 124 inches
314 cm |
Ground clearance | 18.6 inches
47 cm |
Bar rear axle | 4.13 by 112 inches
104 by 2844 mm |
Bar rear axle | 4.13 by 120 inches
104 by 3048 mm |
2WD Front tread | 61 to 89 inches
154 to 226 cm |
4WD Front tread | 60 to 89 inches
152 to 226 cm |
SuperSteer Front tread | 60 to 88 inches
152 to 223 cm |
New Holland 8970A Weight | |
|---|---|
2WD Shipping | 17250 lbs
7824 kg |
4WD Shipping | 18690 lbs
8477 kg |
SuperSteer Shipping | 19590 lbs
8886 kg |
Photos
New Holland 8970A
New Holland 8970A
