New Holland 9384

The New Holland 9384 is a tractor produced by New Holland. It is equipped with a 660 ci 10.8 L engine. The rated power output is 270 hp 201.3 kW. Transmission: Quadrasync. Operating weight: 18844 lbs 8547 kg.

Overview

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

Production
Distributor	New Holland
Manufacturer	Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada

New Holland 9384 Engine
Cummins 10.8L 6-cyl diesel
Engine details ...

New Holland 9384 Power
Engine (gross)	270 hp 201.3 kW

Mechanical
Four-wheel drive
Final drives	planetary
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	230 gal 870.6 L
Hydraulic system	20 gal (reservoir) 75.7 L
	33 gal (total system) 124.9 L

Hydraulics
Type	closed center
Capacity	20 gal (reservoir) 75.7 L
	33 gal (total system) 124.9 L
Pressure	2250 psi 155.1 bar
Valves	4
Pump flow	45 gpm 170.3 lpm
Steering flow	27 gpm 102.2 lpm
Steering press.	2500 psi 172.4 bar

Tractor hitch
Rear Type	IVN/III
Rear lift (at 24"/610mm)	13000 lbs 5896 kg
Drawbar	Cat. 4

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	1000 (1.75)
Engine RPM	1000@2100

Dimensions & Tires
Wheelbase	133 inches 337 cm
Weight	18844 lbs 8547 kg
Front tire	18.4-38
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	130
Batteries	3
Battery CCA	625
Battery volts	12

References
84 Series 4WD Tractors published in 1999, by New Holland
Operator's Manual 9184 - 9384 - 9484 - 9684 - 9884 (86584305) published in 1999

Engine

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

Engine Detail — 660 ci / 10.8 L Diesel

Manufacturer	Cummins M11
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	660 ci 10.8 L
Bore/Stroke	4.921x5.787 inches 125 x 147 mm
Power (gross)	270 hp 201.3 kW
Air cleaner	dual paper elements
Compression	16.1:1
Rated RPM	2100
Idle RPM	850-2460
Torque	1050 lb-ft 1423.8 Nm
Torque RPM	1300
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	38.8 qts 36.7 L
Coolant capacity	61.3 qts 58.0 L

Transmission

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

Transmission options
12-speed partially synchronized
12-speed full power shift

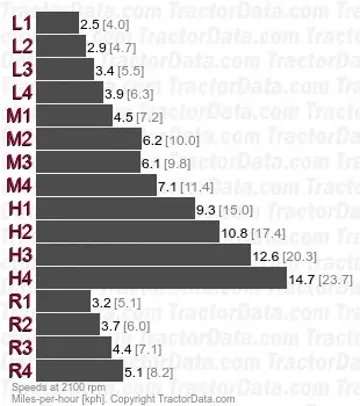

Transmission — Quadrasync

Transmission	Quadrasync
Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	hydraulic wet disc
Four synchronized gears in three ranges, plus reverse range. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range.
With 18.4-38 tires.

Transmission — 12 forward and 2 reverse full power shift

Type	full power shift
Gears	12 forward and 2 reverse
Clutch	electro-hydraulic wet disc
With 18.4-38 tires.

Dimensions

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

New Holland 9384 Tires
Ag front	18.4-38
Ag rear	18.4-38

Dimensions
Wheelbase	133 inches 337 cm
Length	266 inches 675 cm
Width	144.6 inches*Outer width of 18.4-38 duals. 367 cm
Height (cab)	134.5 inches 341 cm
Height (exhaust)	144.1 inches 366 cm
Shipping weight	18844 lbs 8547 kg
Max weight	32000 lbs 14515 kg

Photos

New Holland 9384 tractor photo
