Deutz-Fahr Agrotron 265
The Deutz-Fahr Agrotron 265 is a tractor produced by Deutz Fahr. It is equipped with a 436.1 ci 7.1 L engine. The rated power output is 246.8 hp 184.0 kW. Transmission: ZF 7300. Operating weight: 19952 lbs 9050 kg.
Engine Power
246.8 hp
184.0 kW
Fuel & Capacities
145.3 gal
550.0 L
Transmission
ZF 7300
Operating Weight
19952 lbs
9050 kg
Deutz Fahr Deutz-Fahr Agrotron 265 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2003 - 2006
Agrotron SeriesRow-Crop tractor |
|---|---|
2003 - 2006 | |
Agrotron Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Deutz-Fahr |
Row-Crop tractor | |
Deutz-Fahr Agrotron 265 Engine | |
|---|---|
Deutz 7.1L 6-cyl diesel | |
Fuel tank | 145.3 gal
550.0 L |
Engine details ...  | |
Deutz-Fahr Agrotron 265 Transmission | |
|---|---|
40-speed four-speed power shift | |
Transmission details ...  |
Deutz-Fahr Agrotron 265 Power | |
|---|---|
Engine (net) | 246.8 hp
184.0 kW |
Engine (max) | 272.2 hp
203.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | closed center load sensing |
Pressure | 2901 psi
200.0 bar |
Pump flow | 31.7 gpm
120.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | III |
Rear lift | 23100 lbs
10478 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 (1.375) |
1000 (1.75) | |
Front PTO | independent |
Clutch | electro-hydraulic |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 121.6 inches
308 cm |
Weight | 19952 lbs
9050 kg |
Front tire | 520/70R34 |
Rear tire | 710/70R42 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
Agrotron 210-235-265 published in 2004, by Deutz-Fahr | |
Agrotron 215-265 published in 2005, by Deutz-Fahr |
Engine
Engine Detail — 436.1 ci / 7.1 L Diesel
Manufacturer | Deutz BF6M1013EC |
Configuration | turbocharged intercooled diesel, 6-cylinder, liquid-cooled |
Displacement | 436.1 ci
7.1 L |
Bore/Stroke | 4.25x5.12 inches
108 x 130 mm |
Rated Power (net) | 246.8 hp
184.0 kW |
Maximum Power (net) | 257.5 hp
192.0 kW |
Maximum Power (gross) | 272.2 hp
203.0 kW |
Rated RPM | 2350 |
Torque | 758.2 lb-ft
1028.1 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Transmission

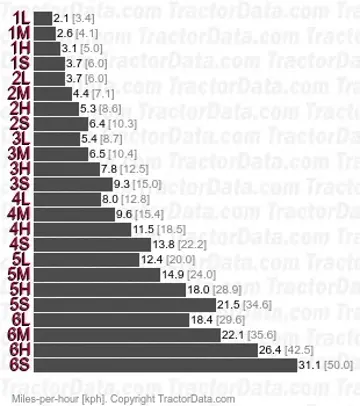

Transmission — ZF 7300
Transmission | ZF 7300 |
Type | four-speed power shift |
Gears | 40 forward and reverse |
Four power shift speeds in six ranges with power shuttle, plus an additional four creeper ranges. | |
 | |
Dimensions
Deutz-Fahr Agrotron 265 Tires | |
|---|---|
Standard tires (ag) | Front: 520/70R34. Rear: 710/70R42 |
Optional tires (ag) | Front: 480/70R34. Rear: 650/85R38 |
Front: 520/70R30. Rear: 620/70R42 | |
Front: 520/70R30. Rear: 710/70R38 | |
Front: 600/65R30. Rear: 650/65R42 | |
Front: 600/70R30. Rear: 710/70R38 | |
Dimensions | |
|---|---|
Wheelbase | 121.6 inches
308 cm |
Length | 196.9 inches
500 cm |
Height (cab) | 128.2 inches
325 cm |
Shipping weight | 19952 lbs
9050 kg |
