New Holland 9682
The New Holland 9682 is a tractor produced by New Holland. It is equipped with a 855 ci 14.0 L engine. The listed engine power is Diesel (listed): 360 hp / 268.5 kW. Transmission: Power Shift. Operating weight: 19730 to 31865 pounds.
Engine Power
Diesel (listed): 360 hp / 268.5 kW
Fuel & Capacities
245 gal
927.3 L
Transmission
Power Shift
Operating Weight
19730 to 31865 pounds
Overview
 | 1996 - 2000
9082 SeriesFour-wheel Drive (4WD) tractorVersatile built
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built |
|---|
Production | |
|---|---|
Distributor | New Holland |
Manufacturer | Versatile |
Four-wheel Drive (4WD) tractor | |
Built in Winnipeg, Manitoba, Canada | |
New Holland 9682 Engine | |
|---|---|
Cummins 14.0L 6-cyl diesel | |
Engine details ...  |
New Holland 9682 Power | |
|---|---|
Engine | 360 hp
268.5 kW |
Drawbar (claimed) | 285 hp
212.5 kW |
PTO (claimed) | 320 hp
238.6 kW |
Drawbar (tested) | 302.9 hp
225.9 kW |
PTO (tested) | 337.5 hp
251.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostaic power |
Hydraulic dry disc brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Total Fuel | 245 gal
927.3 L |
Usable Fuel | 230 gal
870.6 L |
Hydraulic system | 31 gal
117.3 L |
33 gal (with 3-point)
124.9 L | |
Front hubs | 8 qts
7.6 L |
12.8 qts (HD axle)
12.1 L | |
Front diff. | 28.4 qts
26.9 L |
Rear hubs | 8 qts
7.6 L |
12.8 qts (HD axle)
12.1 L | |
Rear diff. | 28.4 qts
26.9 L |
Hydraulics | |
|---|---|
Type | closed center load sensing |
Capacity | 31 gal
117.3 L |
33 gal (with 3-point)
124.9 L | |
Pressure | 2250 psi
155.1 bar |
Valves | 1 to 4 |
Pump flow | 50 gpm
189.2 lpm |
SCV flow | 30 gpm
113.6 lpm |
Steering flow | 30 gpm
113.6 lpm |
Steering press. | 2500 psi
172.4 bar |
Tractor hitch | |
|---|---|
Rear Type | IVN/3 (optional) |
Rear lift (at 24"/610mm) | 13,000 lbs
5896 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent (optional) |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 1000 (1.75) |
Engine RPM | 1000@2100 |
Dimensions & Tires | |
|---|---|
Wheelbase | 133 inches
337 cm |
Weight | 19730 to 31865 pounds |
Front tire | 20.8R42 |
Rear tire | 20.8R42 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 130 |
Charging volts | 12 |
Batteries | 3 |
Battery CCA | 950 |
Battery volts | 12 |
Battery Group | SAE31 |
References | |
|---|---|
 | |
82 Series Versatile 260 to 425 hp 4WD Tractors published in 1995, by New Holland | |
Operator's Manual Tractors 9282, 9482, 9682 and 9882 (42928241) published in 1996 | |
North American Buyer's Guide published in 1997, by New Holland |
Engine
Engine Detail — 855 ci / 14.0 L Diesel
Manufacturer | Cummins N14 |
Configuration | turbocharged aftercooled diesel, 6-cylinder, liquid-cooled vertical |
Displacement | 855 ci
14.0 L |
Bore/Stroke | 5.50x6.00 inches
140 x 152 mm |
Power | 360 hp
268.5 kW |
Air cleaner | dual paper elements |
Compression | 18.5:1 |
Rated RPM | 2100 |
Idle RPM | 900-2400 |
Torque | 1215 lb-ft
1647.5 Nm |
Torque RPM | 1400 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |
Coolant capacity | 62.4 qts
59.1 L |
Oil capacity | 40.8 qts
38.6 L |
Oil change | 250 h |
Transmission
Transmission options | |
|---|---|
12-speed partially synchronized | |
12-speed full power shift |

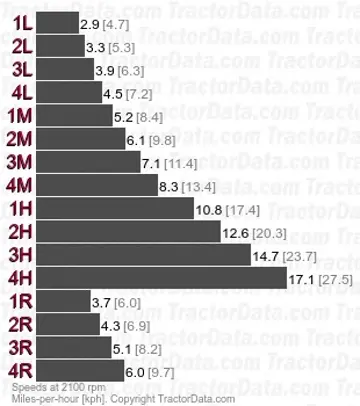

Transmission — Quadra-Sync
Transmission | Quadra-Sync |
Type | partially synchronized |
Gears | 12 forward and 4 reverse |
Clutch | 11-inch hydraulic wet disc |
Four speeds (1-4) in three ranges (L/M/H) plus reverse range. Speed changes are synchronized using the clutch. Tractor must be stopped to shift ranges. Depressing the clutch fully activates a transmission brake, it is recommended to depress it two-thirds when shifting gears. | |
With 20.8R42 rear tires. | |
 | |
Transmission — Power Shift
Transmission | Power Shift |
Type | full power shift |
Gears | 12 forward and 2 reverse |
Clutch | 9-inch hydraulic |
Power shift transmission operated with a single control lever. Lever is moved ahead for forward range and to the back for reverse range, the neutral-lock button must be pressed to move the lever into range. Pushing right up-shifts and left down-shifts. Transmission always begins in first gear. Pressing the clutch while in motion will cause the transmission to automatically down-shift to match ground speed. | |
With 20.8R42 rear tires. | |
 | |
Dimensions
New Holland 9682 Tires | |
|---|---|
Ag front | 20.8R42 |
Ag rear | 20.8R42 |
Dimensions | |
|---|---|
Wheelbase | 133 inches
337 cm |
Length | 266 inches
675 cm |
Width | 150.2 inches (20.8R42 duals)
381 cm |
Height (cab) | 136.9 inches
347 cm |
Height (exhaust) | 146.5 inches
372 cm |
New Holland 9682 Weight | |
|---|---|
Shipping | 19,730 lbs
8949 kg |
Operating | 31,865 lbs (20.8R42 duals)
14453 kg |
Max capacity | 38,000 lbs
17236 kg |
Tests
OCED Tractor Test 1816 | |
|---|---|
Diesel Quadra-Sync 4WD
October 1998 - 1998,
Link: OCED Tractor Test 1816 file | |
PTO performance | |
Max power | 337.5 hp
251.7 kW |
Fuel use | 18.0 gal/hour
68.1 l/hour |
Power at rated engine speed | 319.8 hp
238.5 kW |
Fuel use | 18.8 gal/hour
71.2 l/hour |
Drawbar performance | |
Max power | 302.9 hp
225.9 kW |
Fuel use | 19.9 gal/hour
75.3 l/hour |
Max pull | 34,630 lbs
15708 kg |
Photos
New Holland 9682 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for New Holland 9682 based on its 360 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland 9682.
Estimated Continuous Field Runtime: 13.1 hrs
Approximately 13.1 hours of continuous field operation at ~75% rated power on a full tank (245 gal / 927.4 L).
Estimated 75% Load Fuel Burn~18.7 gal/hr (70.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
New Holland 9682 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for New Holland 9682.
Converted Equivalents:
Horsepower (HP)360 hp
Kilowatts (kW)268.5 kW
Metric Horsepower (PS / CV)365 PS
Direct Competitor Comparison
Compare New Holland 9682 against same-era industry alternatives in the same horsepower class.
Current Model
New Holland
New Holland 9682
Engine Power:Diesel (listed): 360 hp / 268.5 kW
★ Baseline Reference
