New Holland 9482

1996 - 2000

9082 Series

Four-wheel Drive (4WD) tractor

Versatile built

9082 Series

Four-wheel Drive (4WD) tractor

Versatile built

Distributor

New Holland

Manufacturer

Versatile

Four-wheel Drive (4WD) tractor

Built in Winnipeg, Manitoba, Canada

Cummins 10.8L 6-cyl diesel

Engine

310 hp 231.2 kW

Drawbar (claimed)

239 hp 178.2 kW

PTO (claimed)

274 hp 204.3 kW

Drawbar (tested)

239.1 hp 178.3 kW

PTO (tested)

283.9 hp 211.7 kW

Four-wheel drive

Steering

hydrostatic power

Hydraulic dry disc brakes

Cab standard with air-conditioning.

Fuel

245 gal*Total capacity 927.3 L

230 gal*Usable capacity 870.6 L

Hydraulic system

31 gal 117.3 L

33 gal (with 3-point) 124.9 L

Front hubs

8 qts 7.6 L

Front diff.

28.4 qts 26.9 L

Rear hubs

8 qts 7.6 L

Rear diff.

28.4 qts 26.9 L

Type

closed center load sensing

Capacity

31 gal 117.3 L

33 gal (with 3-point) 124.9 L

Pressure

2250 psi 155.1 bar

Valves

1 to 4

Pump flow

45 gpm 170.3 lpm

SCV flow

30 gpm 113.6 lpm

Steering flow

27 gpm 102.2 lpm

Steering press.

2500 psi 172.4 bar

Rear Type

IVN/3 OptOptional

Rear lift (at 24"/610mm)

13000 lbs 5896 kg

Rear PTO

independent OptOptional

Clutch

electro-hydraulic wet disc

Rear PTO Type

1000 (1.75)

Engine RPM

1000@2100

Wheelbase

133 inches 337 cm

Weight

18844 to 30000 pounds

Front tire

20.8R42

Rear tire

20.8R42

Ground

negative

Charging system

alternator

Charging amps

130

Charging volts

12

Batteries

3

Battery CCA

625

Battery volts

12

Battery Group

SAE31

82 Series Versatile 260 to 425 hp 4WD Tractors published in 1995, by New Holland

Operator's Manual Tractors 9282, 9482, 9682 and 9882 (42928241) published in 1996

North American Buyer's Guide published in 1997, by New Holland

1996 - 2000

9082 Series

Four-wheel Drive (4WD) tractor

Versatile built

9082 Series

Four-wheel Drive (4WD) tractor

Versatile built

Manufacturer

Cummins M11

Configuration

turbocharged aftercooled diesel, 6-cylinder, liquid-cooled vertical

Displacement

660 ci 10.8 L

Bore/Stroke

4.921x5.787 inches 125 x 147 mm

Power

310 hp 231.2 kW

Air cleaner

dual paper elements

Compression

16.1:1

Rated RPM

2100

Idle RPM

900-2460

Torque

1050 lb-ft 1423.8 Nm

Torque RPM

1400

Firing order

1-5-3-6-2-4

Starter volts

12

Coolant capacity

61.2 qts 57.9 L

Oil capacity

38.8 qts 36.7 L

Oil change

250 h

1996 - 2000

9082 Series

Four-wheel Drive (4WD) tractor

Versatile built

9082 Series

Four-wheel Drive (4WD) tractor

Versatile built

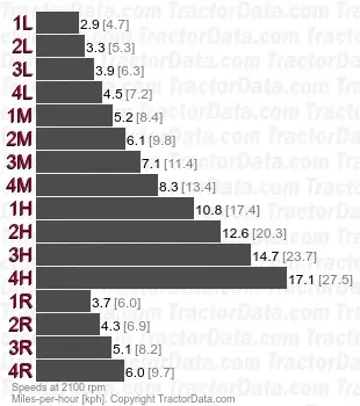

12-speed partially synchronized

12-speed full power shift

Transmission

Quadra-Sync

Type

partially synchronized

Gears

12 forward and 4 reverse

Clutch

11-inch hydraulic wet disc

Four speeds (1-4) in three ranges (L/M/H) plus reverse range. Speed changes are synchronized using the clutch. Tractor must be stopped to shift ranges. Depressing the clutch fully activates a transmission brake, it is recommended to depress it two-thirds when shifting gears.

With 20.8R42 rear tires.

Transmission

Power Shift

Type

full power shift

Gears

12 forward and 2 reverse

Clutch

9-inch hydraulic

Power shift transmission operated with a single control lever. Lever is moved ahead for forward range and to the back for reverse range, the neutral-lock button must be pressed to move the lever into range. Pushing right up-shifts and left down-shifts. Transmission always begins in first gear. Pressing the clutch while in motion will cause the transmission to automatically down-shift to match ground speed.

With 20.8R42 rear tires.

1996 - 2000

9082 Series

Four-wheel Drive (4WD) tractor

Versatile built

9082 Series

Four-wheel Drive (4WD) tractor

Versatile built

Ag front

20.8R42

Ag rear

20.8R42

Wheelbase

133 inches 337 cm

Length

266 inches 675 cm

Width

150.2 inches*Width with 20.8R42 duals. 381 cm

Height (cab)

136.9 inches 347 cm

Height (exhaust)

146.5 inches 372 cm

Shipping

18,844 lbs 8547 kg

Operating

30,000 lbs (20.8R42 duals) 13608 kg

Max capacity

34,000 lbs 15422 kg

1996 - 2000

9082 Series

Four-wheel Drive (4WD) tractor

Versatile built

9082 Series

Four-wheel Drive (4WD) tractor

Versatile built

Diesel Quadra-Sync 4WD October 1998 - November 1998, Link: OCED Tractor Test 1815 file

PTO performance

Max power

283.9 hp 211.7 kW

Fuel use

14.9 gal/hour 56.4 l/hour

Power at rated engine speed

273.7 hp 204.1 kW

Fuel use

15.6 gal/hour 59.0 l/hour

Drawbar performance

Max power

239.1 hp 178.3 kW

Fuel use

15.1 gal/hour 57.2 l/hour

Gear 1M used for power test.

Max pull

33,490 lbs 15191 kg

Gear 1L used for pull test.
