New Holland 9684
The New Holland 9684 is a tractor produced by New Holland. It is equipped with a 855 ci 14.0 L engine. The listed engine power is Diesel (gross): 360 hp / 268.5 kW. Transmission: Quadrasync. Operating weight: 19730 to 30630 pounds.
Engine Power
Diesel (gross): 360 hp / 268.5 kW
Fuel & Capacities
230 gal
870.6 L
Transmission
Quadrasync
Operating Weight
19730 to 30630 pounds
Overview
 | 2000 - 2001
84 SeriesFour-wheel Drive (4WD) tractorVersatile built
84 Series
Four-wheel Drive (4WD) tractor
Versatile built |
|---|
Production | |
|---|---|
Distributor | New Holland |
Manufacturer | Versatile |
Four-wheel Drive (4WD) tractor | |
Built in Winnipeg, Manitoba, Canada | |
Variants | |
|---|---|
2360 | similar Versatile model |
New Holland 9684 Engine | |
|---|---|
Cummins 14.0L 6-cyl diesel | |
Engine details ...  |
New Holland 9684 Power | |
|---|---|
Engine (gross) | 360 hp
268.5 kW |
Drawbar (tested) | 277.2 hp
206.7 kW |
PTO (tested) | 349.1 hp
260.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Articulated power steering | |
Hydraulic disc brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 230 gal
870.6 L |
Hydraulic system | 20 gal (reservoir)
75.7 L |
33 gal (total system)
124.9 L | |
Hydraulics | |
|---|---|
Type | closed center |
Capacity | 20 gal (reservoir)
75.7 L |
33 gal (total system)
124.9 L | |
Pressure | 2250 psi
155.1 bar |
Valves | 4 |
Pump flow | 50 gpm
189.2 lpm |
Steering flow | 27 gpm
102.2 lpm |
Steering press. | 2500 psi
172.4 bar |
Tractor hitch | |
|---|---|
Rear Type | IVN/III |
Rear lift (at 24"/610mm) | 13000 lbs
5896 kg |
Drawbar | Cat. 4 |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 1000 (1.75) |
Engine RPM | 1000@2100 |
Dimensions & Tires | |
|---|---|
Wheelbase | 133 inches
337 cm |
Weight | 19730 to 30630 pounds |
Front tire | 20.8-42 |
Rear tire | 20.8-42 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 130 |
Batteries | 3 |
Battery CCA | 950 |
Battery volts | 12 |
References | |
|---|---|
 | |
84 Series 4WD Tractors published in 1999, by New Holland | |
Operator's Manual 9184 - 9384 - 9484 - 9684 - 9884 (86584305) published in 1999 |
Engine
Engine Detail — 855 ci / 14.0 L Diesel
Manufacturer | Cummins N14 |
Configuration | turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline |
Displacement | 855 ci
14.0 L |
Bore/Stroke | 5.50x6.00 inches
140 x 152 mm |
Power (gross) | 360 hp
268.5 kW |
Air cleaner | dual paper elements |
Compression | 18.5:1 |
Rated RPM | 2100 |
Idle RPM | 825-2400 |
Torque | 1215 lb-ft
1647.5 Nm |
Torque RPM | 1400 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |
Oil capacity | 40.9 qts
38.7 L |
Coolant capacity | 63.4 qts
60.0 L |
Transmission
Transmission options | |
|---|---|
12-speed partially synchronized | |
12-speed full power shift |

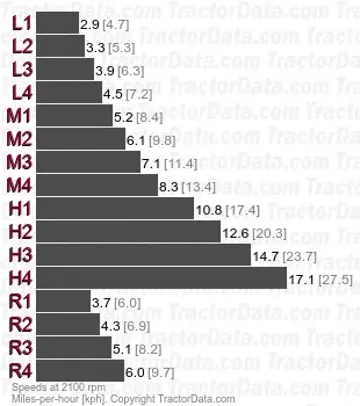

Transmission — Quadrasync
Transmission | Quadrasync |
Type | partially synchronized |
Gears | 12 forward and 4 reverse |
Clutch | hydraulic wet disc |
Four synchronized gears in three ranges, plus reverse range. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range. | |
With 20.8-42 tires. | |
 | |
Transmission — 12 forward and 2 reverse full power shift
Type | full power shift |
Gears | 12 forward and 2 reverse |
Clutch | electro-hydraulic wet disc |
With 20.8-42 tires. | |
 | |
Dimensions
New Holland 9684 Tires | |
|---|---|
Ag front | 20.8-42 |
Ag rear | 20.8-42 |
Dimensions | |
|---|---|
Wheelbase | 133 inches
337 cm |
Length | 266 inches
675 cm |
Width | 150.6 inches*Outer width of 20.8-42 duals.
382 cm |
Height (cab) | 137.5 inches
349 cm |
Height (exhaust) | 147.2 inches
373 cm |
New Holland 9684 Weight | |
|---|---|
Shipping | 19730 lbs
8949 kg |
Operating | 30630 lbs (duals)
13893 kg |
Max capacity | 38000 lbs
17236 kg |
Tests
OCED Tractor Test 1942 | |
|---|---|
Diesel 12-speed 4WD
June 1 - July 31, 2000
Link: OCED Tractor Test 1942 file | |
PTO performance | |
Max power | 349.1 hp
260.3 kW |
Fuel use | 18.5 gal/hour
70.0 l/hour |
Power at rated engine speed | 301.3 hp
224.7 kW |
Fuel use | 17.8 gal/hour
67.4 l/hour |
Drawbar performance | |
Max power | 277.2 hp
206.7 kW |
Fuel use | 17.8 gal/hour
67.4 l/hour |
Max pull | 31355 lbs
14222 kg |
Photos
New Holland 9684
Recommended Implements & Sizing Guide
Engineering recommendations for New Holland 9684 based on its 360 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland 9684.
Estimated Continuous Field Runtime: 12.3 hrs
Approximately 12.3 hours of continuous field operation at ~75% rated power on a full tank (230 gal / 870.6 L).
Estimated 75% Load Fuel Burn~18.7 gal/hr (70.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
New Holland 9684 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for New Holland 9684.
Converted Equivalents:
Horsepower (HP)360 hp
Kilowatts (kW)268.5 kW
Metric Horsepower (PS / CV)365 PS
