New Holland 9882
The New Holland 9882 is a tractor produced by New Holland. It is equipped with a 855 ci 14.0 L engine. The listed engine power is Diesel (listed): 425 hp / 316.9 kW. Transmission: Quadra-Sync. Operating weight: 20230 to 31670 pounds.
Engine Power
Diesel (listed): 425 hp / 316.9 kW
Fuel & Capacities
230 gal*Usable tank capacity. Total capacity is 245 US Gallons.
870.6 L
Transmission
Quadra-Sync
Operating Weight
20230 to 31670 pounds
Overview
 | 1996 - 2000
9082 SeriesFour-wheel Drive (4WD) tractorVersatile built
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built |
|---|
Production | |
|---|---|
Distributor | New Holland |
Manufacturer | Versatile |
Four-wheel Drive (4WD) tractor | |
Built in Winnipeg, Manitoba, Canada | |
New Holland 9882 Engine | |
|---|---|
Cummins 14.0L 6-cyl diesel | |
Engine details ...  |
New Holland 9882 Transmission | |
|---|---|
12-speed partially synchronized | |
Transmission details ...  |
New Holland 9882 Power | |
|---|---|
Engine | 425 hp
316.9 kW |
Drawbar (claimed) | 338 hp
252.0 kW |
Drawbar (tested) | 346.4 hp
258.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Articulated power steering | |
Hydraulic dry disc brakes | |
Cab standard with air-conditioning. |
Capacity | |
|---|---|
Fuel | 230 gal*Usable tank capacity. Total capacity is 245 US Gallons.
870.6 L |
Hydraulic system | 31 gal
117.3 L |
33 gal (with 3-point)
124.9 L | |
Front hubs | 12.8 qts
12.1 L |
Front diff. | 28.4 qts
26.9 L |
Rear hubs | 12.8 qts
12.1 L |
Rear diff. | 28.4 qts
26.9 L |
Hydraulics | |
|---|---|
Type | closed center load sensing |
Capacity | 31 gal
117.3 L |
33 gal (with 3-point)
124.9 L | |
Pressure | 2250 psi
155.1 bar |
Valves | 1 to 4 |
Pump flow | 50 gpm
189.2 lpm |
SCV flow | 30 gpm
113.6 lpm |
Steering flow | 30 gpm
113.6 lpm |
Steering press. | 2500 psi
172.4 bar |
Tractor hitch | |
|---|---|
Rear Type | IVN/3 OptOptional |
Rear lift (at 24"/610mm) | 13,000 lbs
5896 kg |
Dimensions & Tires | |
|---|---|
Wheelbase | 133 inches
337 cm |
Weight | 20230 to 31670 pounds |
Front tire | 710/70R38 |
Rear tire | 710/70R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 130 |
Charging volts | 12 |
Batteries | 3 |
Battery CCA | 950 |
Battery volts | 12 |
Battery Group | SAE31 |
References | |
|---|---|
 | |
82 Series Versatile 260 to 425 hp 4WD Tractors published in 1995, by New Holland | |
Operator's Manual Tractors 9282, 9482, 9682 and 9882 (42928241) published in 1996 | |
North American Buyer's Guide published in 1997, by New Holland |
Engine
Engine Detail — 855 ci / 14.0 L Diesel
Manufacturer | Cummins N14 |
Configuration | turbocharged aftercooled diesel, 6-cylinder, liquid-cooled vertical |
Displacement | 855 ci
14.0 L |
Bore/Stroke | 5.50x6.00 inches
140 x 152 mm |
Power | 425 hp
316.9 kW |
Air cleaner | dual paper elements |
Compression | 16.5:1 |
Rated RPM | 2100 |
Idle RPM | 900-2400 |
Torque | 1400 lb-ft
1898.4 Nm |
Torque RPM | 1400 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |
Coolant capacity | 63.6 qts
60.2 L |
Oil capacity | 40.8 qts
38.6 L |
Oil change | 250 h |
Transmission

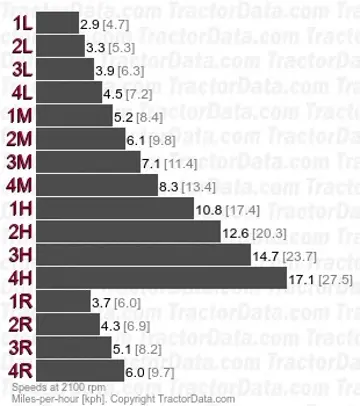

Transmission — Quadra-Sync
Transmission | Quadra-Sync |
Type | partially synchronized |
Gears | 12 forward and 4 reverse |
Clutch | 11-inch hydraulic wet disc |
Four speeds (1-4) in three ranges (L/M/H) plus reverse range. Speed changes are synchronized using the clutch. Tractor must be stopped to shift ranges. Depressing the clutch fully activates a transmission brake, it is recommended to depress it two-thirds when shifting gears. | |
With 20.8R42 rear tires. | |
 | |
Dimensions
New Holland 9882 Tires | |
|---|---|
Ag front | 710/70R38 |
Ag rear | 710/70R38 |
Dimensions | |
|---|---|
Wheelbase | 133 inches
337 cm |
Length | 266 inches
675 cm |
Width | 150.2 inches (20.8R42 duals)
381 cm |
Height (cab) | 136.9 inches
347 cm |
Height (exhaust) | 146.5 inches
372 cm |
New Holland 9882 Weight | |
|---|---|
Shipping | 20,230 lbs
9176 kg |
Operating | 31,670 lbs ((With 710/70R38 duals.)
14365 kg |
Max capacity | 44,000 lbs
19958 kg |
Tests
OCED Tractor Test 1791 | |
|---|---|
Diesel 12-speed 4WD
October 1996 - 1996,
Link: OCED Tractor Test 1791 file | |
Drawbar performance | |
Max power | 346.4 hp
258.3 kW |
Fuel use | 21.6 gal/hour
81.8 l/hour |
Gear 1M used for power test. | |
Max pull | 43,765 lbs
19851 kg |
Gear 1L used for pull test. | |
Photos
New Holland 9882 four-wheel drive tractor.
Recommended Implements & Sizing Guide
Engineering recommendations for New Holland 9882 based on its 425 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland 9882.
Estimated Continuous Field Runtime: 10.4 hrs
Approximately 10.4 hours of continuous field operation at ~75% rated power on a full tank (230 gal / 870.6 L).
Estimated 75% Load Fuel Burn~22.1 gal/hr (83.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
New Holland 9882 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for New Holland 9882.
Converted Equivalents:
Horsepower (HP)425 hp
Kilowatts (kW)316.9 kW
Metric Horsepower (PS / CV)430.9 PS
