New Holland 9884

The New Holland 9884 is a tractor produced by New Holland. It is equipped with a 855 ci 14.0 L engine. The rated power output is 425 hp 316.9 kW. Transmission: Quadrasync. Operating weight: 20230 lbs 9176 kg.

Overview

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

Production
Distributor	New Holland
Manufacturer	Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada

New Holland 9884 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...

New Holland 9884 Transmission
12-speed partially synchronized
Transmission details ...

New Holland 9884 Power
Engine (gross)	425 hp 316.9 kW

Mechanical
Four-wheel drive
Final drives	planetary
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	230 gal 870.6 L
Hydraulic system	20 gal (reservoir) 75.7 L
	33 gal (total system) 124.9 L

Hydraulics
Type	closed center
Capacity	20 gal (reservoir) 75.7 L
	33 gal (total system) 124.9 L
Pressure	2250 psi 155.1 bar
Valves	4
Pump flow	50 gpm 189.2 lpm
SCV flow	30 gpm 113.6 lpm
Steering flow	27 gpm 102.2 lpm
Steering press.	2500 psi 172.4 bar

Tractor hitch
Rear Type	IVN/III
Rear lift (at 24"/610mm)	13000 lbs 5896 kg
Drawbar	Cat. 4

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	1000 (1.75)
Engine RPM	1000@2100

Dimensions & Tires
Wheelbase	133 inches 337 cm
Weight	20230 lbs 9176 kg
Front tire	20.8-42
Rear tire	20.8-42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	130
Batteries	3
Battery CCA	950
Battery volts	12

References
84 Series 4WD Tractors published in 1999, by New Holland
Operator's Manual 9184 - 9384 - 9484 - 9684 - 9884 (86584305) published in 1999

Engine

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

Engine Detail — 855 ci / 14.0 L Diesel

Manufacturer	Cummins N14
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	855 ci 14.0 L
Bore/Stroke	5.50x6.00 inches 140 x 152 mm
Power (gross)	425 hp 316.9 kW
Air cleaner	dual paper elements
Compression	16.5:1
Rated RPM	2100
Idle RPM	825-2400
Torque	1400 lb-ft 1898.4 Nm
Torque RPM	1400
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	40.9 qts 38.7 L
Coolant capacity	63.4 qts 60.0 L

Transmission

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

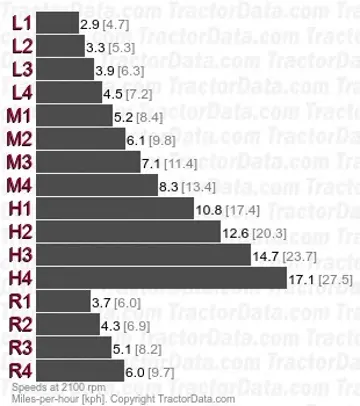

Transmission — Quadrasync

Transmission	Quadrasync
Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	hydraulic wet disc
Four synchronized gears in three ranges, plus reverse range. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range.
With 20.8-42 tires.

Dimensions

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

New Holland 9884 Tires
Ag front	20.8-42
Ag rear	20.8-42

Dimensions
Wheelbase	133 inches 337 cm
Length	266 inches 675 cm
Width	150.6 inches*Outer width of 20.8-42 duals. 382 cm
Height (cab)	137.5 inches 349 cm
Height (exhaust)	147.2 inches 373 cm
Shipping weight	20230 lbs 9176 kg
Max weight	44000 lbs 19958 kg

Photos

New Holland 9884 tractor photo
