New Holland T8.350

The New Holland T8.350 is a tractor produced by New Holland. It is equipped with a 531 ci 8.7 L engine. The listed engine power is Diesel (gross): 280 hp / 208.8 kW. Transmission: Auto Command. Operating weight: 22377 lbs 10150 kg.

Engine Power

Diesel (gross): 280 hp / 208.8 kW

Fuel & Capacities

163 gal 617.0 L

Transmission

Auto Command

Operating Weight

22377 lbs 10150 kg

Overview

	2015 - T8 SeriesRow-Crop tractor
2015 -
T8 Series
Row-Crop tractor

Production
Manufacturer	New Holland (a part of CNH)
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $279,219 in 2016 with powershift

Variants
Magnum 280	similar CaseIH model

New Holland T8.350 Engine
FPT 8.7L 6-cyl diesel
CVT Fuel tank	163 gal 617.0 L
FPS Fuel tank	179 gal 677.5 L
Exhaust fluid (DEF)	26 gal 98.4 L
Engine details ...

New Holland T8.350 Power
Engine (gross)	280 hp 208.8 kW
Engine (max)	351 hp 261.7 kW
PTO (claimed)	235 hp 175.2 kW
Drawbar (tested)	213.10 hp 158.9 kW
PTO (tested)	296.56 hp 221.1 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Power steering
Wet disc brakes
Cab standard with air-conditioning. Comfort Ride cab suspension optional. Intellisteer ready

Hydraulics
Type	closed center pressure-flow compensating (PFC)
Valves	4 to 5
Pump flow	44 gpm 166.5 lpm
	75 gpm*Optional, MegaFlow rate. 283.9 lpm

Tractor hitch
Rear Type	III/IIIN
	IVN/III
Control	electronic lower-link draft sensing
Rear lift	12900 lbs*With 4-inch rear axle and 43-inch link arms. 5851 kg
	14900 lbs*With 4-inch rear axle and 38-inch link arms. 6758 kg
	15900 lbs*With 4.5-inch rear axle and 43-inch link arms. 7212 kg
	17900 lbs*With 4.5-inch rear axle and 38-inch link arms. 8119 kg
Drawbar	Cat. 3
	Cat. 4 OptOptional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)
	540/1000 (1.375)OptOptional
Engine RPM	540@1800
	1000@1800
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)

Dimensions & Tires
FPS Wheelbase	136 inches 345 cm
CVT Wheelbase	138 inches 350 cm
Weight	22377 lbs 10150 kg
Front tire	420/85R34
Rear tire	480/80R50
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery volts	12

References

Genesis T8 Series Tractors published in 2014, by New Holland
Genesis T8 Series Tractors published in 2015, by New Holland

Engine

Engine Detail — 531 ci / 8.7 L Diesel

Manufacturer	FPT
Configuration	variable-geometry turbocharged diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	531 ci 8.7 L
Bore/Stroke	4.606x5.315 inches 117 x 135 mm
Emissions	Tier IV
Emission control	selective catalytic reduction (SCR)
Rated Power (gross)	280 hp 208.8 kW
Maximum Power (gross)	351 hp 261.7 kW
Fuel system	electronic high-pressure common rail
Cooling system	viscous fan
Rated RPM	2000
Starter	electric
Starter volts	12

New Holland T8.350 Engine

Transmission

Transmission options
18-speed full power shift
continuously variable transmission (CVT)
23-speed power shift creeper

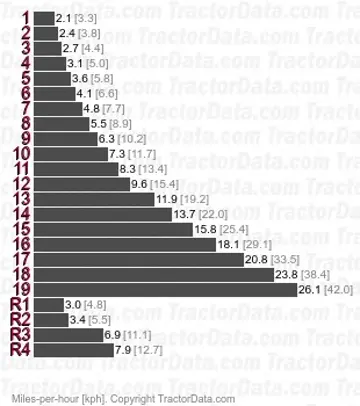

Transmission — Ultra-Command

Transmission	Ultra-Command
Type	full power shift
Gears	18 forward and 4 reverse
Clutch	electro-hydraulic wet discs
Available as 18-speed or 19-speed with ECO overdrive.

Transmission — Auto Command

Transmission	Auto Command
Type	continuously variable transmission (CVT)
Gears	infinite forward and reverse (4-range)
Type	power shift creeper
Gears	23 forward and 6 reverse

Dimensions

New Holland T8.350 Tires
Standard tires (ag)	Front: 420/85R34. Rear: 480/80R50

Dimensions
FPS Wheelbase	136 inches 345 cm
CVT Wheelbase	138 inches 350 cm
FPS Length	261 inches 662 cm
CVT Length	263 inches 668 cm
Height (cab)	132 inches 335 cm
Weight	22377 lbs 10150 kg
Max weight	31791 lbs 14420 kg
Front axle	MFWD
Front axle	Terraglide
Bar rear axle	4 by 120 inches 101 by 3048 mm
Bar rear axle	4.5 by 120 inches 114 by 3048 mm
Front tread	60 to 88 inches 152 to 223 cm

Tests

OCED Tractor Test 2123A
Diesel Power shift 4WD September 11 - 17, 2015 Link: OCED Tractor Test 2123A file
PTO performance
Max power	296.56 hp 221.1 kW
Fuel use	15.1 gal/hour 57.2 l/hour
Power at rated engine speed	242.08 hp 180.5 kW
Fuel use	13.0 gal/hour 49.2 l/hour
Power at rated PTO speed	296.56 hp 221.1 kW
Fuel use	15.1 gal/hour 57.2 l/hour
Drawbar performance
Max power	213.10 hp 158.9 kW
Fuel use	13.0 gal/hour 49.2 l/hour
Gear 8 used for power test.
Max pull	26131 lbs 11853 kg
Gear 4 used for pull test.

Photos

New Holland T8.350

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland T8.350 based on its 280 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland T8.350.

Estimated Continuous Field Runtime: 11.2 hrs

Approximately 11.2 hours of continuous field operation at ~75% rated power on a full tank (163 gal / 617 L).

Estimated 75% Load Fuel Burn~14.6 gal/hr (55.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
