New Holland T9.435

The New Holland T9.435 is a tractor produced by New Holland. It is equipped with a 531 ci 8.7 L engine. The listed engine power is Diesel (gross): 370 hp / 275.9 kW. Transmission: Ultra Command. Operating weight: 35848 lbs 16260 kg.

Engine Power

Diesel (gross): 370 hp / 275.9 kW

Fuel & Capacities

230 gal 870.6 L

Transmission

Ultra Command

Operating Weight

35848 lbs 16260 kg

Overview

	2014 - 2023 T9 SeriesFour-wheel Drive (4WD) tractor T9 Series Four-wheel Drive (4WD) tractor

Production
Manufacturer	New Holland (a part of CNH)
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA

Variants
Steiger 370	similar CaseIH model

New Holland T9.435 Engine
FPT 8.7L 6-cyl diesel
Fuel tank	230 gal 870.6 L
Exhaust fluid (DEF)	42 gal 159.0 L
Engine details ...

New Holland T9.435 Transmission
17-speed full power shift
Transmission details ...

New Holland T9.435 Power
Engine (gross)	370 hp 275.9 kW
Engine (max)	429 hp 319.9 kW
PTO (claimed)	311 hp 231.9 kW
Drawbar (tested)	300.99 hp 224.4 kW
PTO (tested)	366.46 hp 273.3 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power articulated
Wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteer

Hydraulics
Type	closed center load sensing (CCLS)
Valves	4 to 8
Standard Pump flow	40 gpm 151.4 lpm
High-Flow Pump flow	55 gpm 208.2 lpm
MegaFlow Pump flow	93 gpm 352.0 lpm

Tractor hitch
Rear Type	IVN OptOptional
	IIIN OptOptional
Control	position control
Rear lift (at 24"/610mm)	20000 lbs 9072 kg
Rear Arms	adjustable link ends
Drawbar	Cat. 4

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)
Engine RPM	1000@1998 (early)
	1000@1811 (late)

Dimensions & Tires
Wheelbase	148 inches 375 cm
Weight	35848 lbs 16260 kg
Front tire	710/70
Rear tire	710/70
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	1000
Battery volts	12

References

T9 Series published in 2018, by New Holland

Engine

Engine Detail — 531 ci / 8.7 L Diesel

Manufacturer	FPT Cursor 9
Configuration	variable-geometry urbocharger aftercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	531 ci 8.7 L
Bore/Stroke	4.61x5.31 inches 117 x 135 mm
Emissions	Tier IV
Emission control	selective catalytic reduction with diesel oxidation catalyst
Rated Power (gross)	370 hp 275.9 kW
Maximum Power (gross)	429 hp 319.9 kW
Fuel system	electronic direct-injection high pressure common rail
Cooling system	viscous fan drive
Rated RPM	2000
Torque	1361 lb-ft 1845.5 Nm
Torque RPM	1400
Starter	electric
Starter volts	12

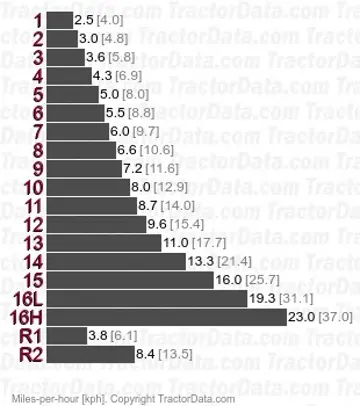

Transmission

Transmission — Ultra Command

Transmission	Ultra Command
Type	full power shift
Gears	17 forward and 2 reverse

Dimensions

New Holland T9.435 Tires
Ag front	710/70 R42
Ag rear	710/70 R42

Dimensions
Wheelbase	148 inches 375 cm
Length	291 inches 739 cm
Width	120 inches*Minimum 304 cm
Height (cab)	151.3 inches 384 cm
Shipping weight	35848 lbs 16260 kg
Max weight	42000 lbs 19051 kg
Front axle	Bar: 5.0 by 120 inches 127 by 3048 mm
Bar rear axle	5.0 by 120 inches 127 by 3048 mm

Tests

OCED Tractor Test 2092A
Diesel 16-speed 4WD September 9 - 29, 2014 Link: OCED Tractor Test 2092A file
PTO performance
Max power	366.46 hp 273.3 kW
Fuel use	19.2 gal/hour 72.7 l/hour
Power at rated engine speed	323.32 hp 241.1 kW
Fuel use	17.4 gal/hour 65.9 l/hour
Power at rated PTO speed	364.07 hp 271.5 kW
Fuel use	19.0 gal/hour 71.9 l/hour
Drawbar performance
Max power	300.99 hp 224.4 kW
Fuel use	17.4 gal/hour 65.9 l/hour
Gear 4 used for power test.
Max pull	37687 lbs 17094 kg
Gear 1 used for pull test.

Photos

New Holland T9.435 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland T9.435 based on its 370 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland T9.435.

Estimated Continuous Field Runtime: 12 hrs

Approximately 12 hours of continuous field operation at ~75% rated power on a full tank (230 gal / 870.6 L).

Estimated 75% Load Fuel Burn~19.2 gal/hr (72.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
