New Holland TL80

The New Holland TL80 is a tractor produced by New Holland. It is equipped with a 238 ci 3.9 L engine. The rated power output is 80 hp 59.7 kW. Transmission: 24 forward and 12 reverse. Operating weight: 6393 to 8245 pounds.

Overview

	1999 - 2004 TL SeriesUtility tractor
1999 - 2004
TL Series
Utility tractor

Production
Manufacturer	New Holland
Utility tractor
Built in Jesi, Italy

New Holland TL80 Engine
Iveco 3.9L 4-cyl diesel
Fuel tank	29 gal 109.8 L
Engine details ...

New Holland TL80 Transmission
24-speed
Transmission details ...

New Holland TL80 Power
Engine	80 hp 59.7 kW
PTO (claimed)	66 hp 49.2 kW
Drawbar (tested)	42.5 hp 31.7 kW
PTO (tested)	68.1 hp 50.8 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Valves	2 or 3
Pump flow	14.5 gpm 54.9 lpm

Tractor hitch
Rear Type	II
Rear lift	6550 lbs 2971 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	92.2 inches (2WD) 234 cm
	91.1 inches (4WD) 231 cm
Weight	6393 to 8245 pounds
Front tire	10.00-16
2WD Rear tire	480/70R-34
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
G6000 Series Commercial Mowers published in 2009, by New Holland
Operator's Manual TL70, TL80, TL90 and TL100 Tractors (6036457100) published in 2002
Operator's Manual TL80, TL90 and TL100 Tractors (86900785) published in 2002

Engine

Engine Detail — 238 ci / 3.9 L Diesel

Manufacturer	Iveco 8045
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	238 ci 3.9 L
Bore/Stroke	4.094x4.528 inches 104 x 115 mm
Power	80 hp 59.7 kW
Air cleaner	dual paper elements
Compression	16.5:1
Rated RPM	2500
Starter volts	12

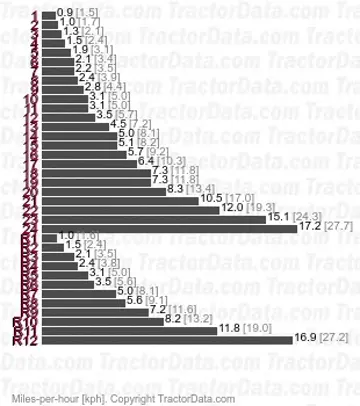

Transmission

Transmission — 24 forward and 12 reverse

Gears	24 forward and 12 reverse
Clutch	dual dry disc

Dimensions

New Holland TL80 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 480/70R-34
4WD Standard tires (ag)	Front: 380/70R-24. Rear: 480/70R-34

Dimensions
Wheelbase	92.2 inches (2WD) 234 cm
	91.1 inches (4WD) 231 cm
2WD Length	154 inches 391 cm
4WD Length	160.1 inches 406 cm
Height (cab)	109.7 inches 278 cm
Clearance (front axle)	11.8 inches 29 cm
Front tread	55.2 to 85.4 inches 140 to 216 cm
Rear tread	55.9 to 86.8 inches 141 to 220 cm

New Holland TL80 Weight
2WD ROPS Shipping	6393 lbs 2899 kg
4WD ROPS Shipping	7055 lbs 3200 kg
2WD Cab Shipping	6834 lbs 3099 kg
4WD Cab Shipping	7496 lbs 3400 kg
Operating	7,660 lbs (2WD) 3474 kg
	8,245 lbs (4WD) 3739 kg
Ballasted	9,900 lbs 4490 kg

Tests

OCED Tractor Test 1911
Diesel 24-speed 4WD April 1999 - December 1999, Link: OCED Tractor Test 1911 file
PTO performance
Max power	68.1 hp 50.8 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Power at rated engine speed	68.0 hp 50.7 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Power at rated PTO speed	66.0 hp 49.2 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Drawbar performance
Max power	42.5 hp 31.7 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Gear 1F Lo used for power test.
Max pull	9,195 lbs 4170 kg
Gear 3S Hi used for pull test.
