New Holland row-crop TM140

The New Holland row-crop TM140 is a tractor produced by New Holland. It is equipped with a 456 ci 7.5 L engine. The listed engine power is Diesel (listed): 140 hp / 104.4 kW. Transmission: Range Command. Operating weight: 11353 to 12935 pounds.

Engine Power

Diesel (listed): 140 hp / 104.4 kW

Fuel & Capacities

75.3 gal 285.0 L

Transmission

Range Command

Operating Weight

11353 to 12935 pounds

Overview

	2002 - 2007 TM Series

Production
Manufacturer	New Holland
Built in Basildon, England

New Holland TM140 Engine
New Holland 7.5L 6-cyl diesel
Engine details ...

New Holland TM140 Power
Engine	140 hp 104.4 kW
PTO (claimed)	115 hp 85.8 kW
Drawbar (tested)	101.2 hp 75.5 kW
PTO (tested)	121.1 hp 90.3 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Cab standard with heat and air-conditioning. Optional heated air-ride seat.

Capacity
Fuel	75.3 gal 285.0 L
Hydraulic system	5.95 gal 22.5 L

Hydraulics
Type	closed center load sensing (CCLS)
Capacity	5.95 gal 22.5 L
Pressure	2750 psi 189.6 bar
Rear valves	4
Mid valves	2 to 4
Pump flow	28 gpm 106.0 lpm
Total flow	44 gpm 166.5 lpm
Steering flow	16 gpm 60.6 lpm

Tractor hitch
Rear Type	2/3N
Control	electronic lower-link draft control
Rear lift (at 24"/610mm)	11,420 lbs 5180 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	107.2 inches 272 cm
Weight	11353 to 12935 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
Battery CCA	1300
Battery volts	12

Engine

Engine Detail — 456 ci / 7.5 L Diesel

Manufacturer	New Holland
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	456 ci 7.5 L
Bore/Stroke	4.40x5.00 inches 112 x 127 mm
Power	140 hp 104.4 kW
Air cleaner	dual paper elements with aspirator
Compression	17.0:1
Rated RPM	2200
Torque RPM	1400
Starter volts	12
Oil capacity	20 qts 18.9 L
Coolant capacity	26.8 qts 25.4 L

Transmission

Transmission options
17-speed full power shift
18-speed full power shift
17-speed partial power shift
18-speed partial power shift

Transmission — Power Command

Transmission	Power Command
Type	full power shift
Gears	17 forward and 6 reverse

Transmission — Power Command

Transmission	Power Command
Type	full power shift
Gears	18 forward and 6 reverse

Transmission — Range Command

Transmission	Range Command
Type	partial power shift
Gears	17 forward and 6 reverse

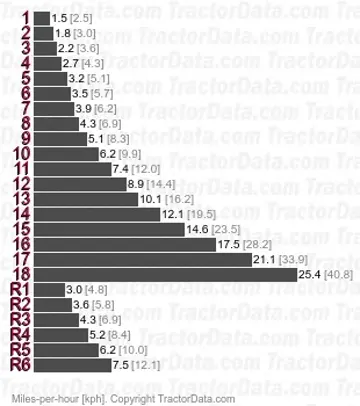

Transmission — Range Command

Transmission	Range Command
Type	partial power shift
Gears	18 forward and 6 reverse
Six speeds (1-6) in three ranges (A-C).

Dimensions

New Holland TM140 Tires

Dimensions
Wheelbase	107.2 inches 272 cm
Length	185.7 inches 471 cm
Height	111.4 inches 282 cm
Ground clearance	16 inches 40 cm
Front axle	2WD
Front axle	4WD
Front axle	SuperSteer 4WD
Front axle	TerraGlide suspension
Flange rear axle
Bar rear axle	98 inch length 2489 mm
Bar rear axle	112 inch length 2844 mm
2WD Front tread	60.9 to 88.9 inches 154 to 225 cm
4WD Front tread	61.1 to 89.3 inches 155 to 226 cm
Flange Rear tread	60 to 87.9 inches 152 to 223 cm
Rear tread	60 to 96 inches 152 to 243 cm
Rear tread	60 to 100 inches 152 to 254 cm

New Holland TM140 Weight
2WD Shipping	11353 lbs 5149 kg
4WD Shipping	11929 lbs 5410 kg
Operating	12935 lbs 5867 kg

Tests

OCED Tractor Test 2118
Diesel Range Command 4WD December 1, 2002 - January 1, 2004 Link: OCED Tractor Test 2118 file
PTO performance
Max power	121.1 hp 90.3 kW
Fuel use	7.5 gal/hour 28.4 l/hour
Power at rated engine speed	119.7 hp 89.3 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Power at rated PTO speed	120.8 hp 90.1 kW
Fuel use	7.7 gal/hour 29.1 l/hour
Drawbar performance
Max power	101.2 hp 75.5 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Gear 9 used for power test.
Max pull	13,895 lbs 6302 kg
Gear 1 used for pull test.

Photos

New Holland TM140, left side.

New Holland TM140, right side.

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland row-crop TM140 based on its 140 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland row-crop TM140.

Estimated Continuous Field Runtime: 10.3 hrs

Approximately 10.3 hours of continuous field operation at ~75% rated power on a full tank (75.3 gal / 285 L).

Estimated 75% Load Fuel Burn~7.3 gal/hr (27.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
