New Holland G5030

The New Holland G5030 is a tractor produced by New Holland Lawn Tractors. It is equipped with a 850 cc 51.87 ci engine. The listed engine power is Gasoline (listed): 27 hp / 20.1 kW. Transmission: infinite forward and reverse. Operating weight: 974 lbs 441 kg.

Engine Power

Gasoline (listed): 27 hp / 20.1 kW

Fuel & Capacities

12 gal 45.4 L

Transmission

infinite forward and reverse

Operating Weight

974 lbs 441 kg

Overview

	2009 - 2012 G5000 SeriesZero-turn mower G5000 Series Zero-turn mower

Production
Manufacturer	New Holland
Zero-turn mower

New Holland G5030 Engine
27HP Kawasaki 850cc 2-cyl gasoline
Fuel tank	12 gal 45.4 L
Engine details ...

New Holland G5030 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Two-post folding ROPS.

Power Take-off (PTO)
Mid PTO	independent

Dimensions & Tires
Wheelbase	51 inches 129 cm
Weight	974 lbs 441 kg
Front tire	13x6.5-6
Rear tire	24x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	400
Battery volts	12

Engine

Engine Detail — 850 cc / 51.87 ci Gasoline

Manufacturer	Kawasaki FX751B
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	850 cc 51.87 ci
Bore/Stroke	3.33x2.99 inches 85 x 76 mm
Power	27 hp 20.1 kW
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

New Holland G5030 Tires
Lawn/turf front	13x6.5-6
Lawn/turf rear	24x12-12

Dimensions
Wheelbase	51 inches 129 cm
Length	80.5 inches 204 cm
Width	54 inches 137 cm
Height (ROPS)	73.5 inches 186 cm
	59 inches*Height with ROPS folded. 149 cm
Shipping weight	974 lbs*Without mower deck. 441 kg
Ground clearance	5.5 inches 13 cm

Attachments

Attachment overview
54" mid-mount mower deck
60" mid-mount mower deck

Photos

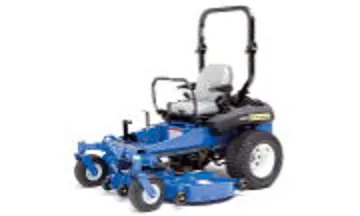

New Holland G5030 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland Lawn Tractors New Holland G5030 based on its 27 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland Lawn Tractors New Holland G5030.

Estimated Continuous Field Runtime: 8.5 hrs

Approximately 8.5 hours of continuous field operation at ~75% rated power on a full tank (12 gal / 45.4 L).

Estimated 75% Load Fuel Burn~1.4 gal/hr (5.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

New Holland Lawn Tractors New Holland G5030 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for New Holland Lawn Tractors New Holland G5030.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)27 hp

Kilowatts (kW)20.1 kW

Metric Horsepower (PS / CV)27.4 PS
