Nuffield 10/60
The Nuffield 10/60 is a tractor produced by Nuffield. It is equipped with a 230 ci 3.8 L engine. The rated power output is 55.36 hp 41.3 kW. Transmission: 10 forward and 2 reverse. Operating weight: 5,865 lbs 2660 kg.
Engine Power
55.36 hp
41.3 kW
Fuel & Capacities
Diesel
Transmission
10 forward and 2 reverse
Operating Weight
5,865 lbs
2660 kg
Nuffield 10/60 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1964 - 1967
Utility tractor |
|---|---|
1964 - 1967 | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Nuffield |
Utility tractor | |
Nuffield 10/60 Engine | |
|---|---|
BMC 3.8L 4-cyl diesel | |
Engine details ...  |
Nuffield 10/60 Transmission | |
|---|---|
10-speed | |
Transmission details ...  |
Nuffield 10/60 Power | |
|---|---|
PTO (claimed) | 55 hp
41.0 kW |
Drawbar (tested) | 45.95 hp
34.3 kW |
PTO (tested) | 55.36 hp
41.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical |
Steering | manual |
power assist optional | |
Independent mechanical disc brakes | |
Open operator station. | |
Hydraulics | |
|---|---|
Pressure | 2000 psi
137.9 bar |
Total flow | 6 gpm
22.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift (at ends) | 2,830 lbs
1283 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Weight | 5,865 lbs
2660 kg |
Front tire | 7.50-16 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
10/42 1060 Tractors published in 1964, by Nuffield |
Engine
Engine Detail — 230 ci / 3.8 L Diesel
Manufacturer | BMC 38T |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.937x4.724 inches
100 x 120 mm |
Air cleaner | oil bath |
Compression | 16.5:1 |
Rated RPM | 2000 |
Starter volts | 12 |
Transmission
Transmission — 10 forward and 2 reverse
Gears | 10 forward and 2 reverse |
Clutch | dry disc |
 | |
Dimensions
Nuffield 10/60 Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 16.9-30 |
Dimensions | |
|---|---|
Operating weight | 5,865 lbs
2660 kg |
Ballasted weight | 10,175 lbs
4615 kg |
Tests
Nebraska Tractor Test 907 | |
|---|---|
Diesel 10-speed 2WD
August 6 - 12, 1965
Link: Nebraska Tractor Test 907 file | |
PTO performance | |
Power at rated engine speed | 55.36 hp
41.3 kW |
Fuel use | 3.9 gal/hour
14.8 l/hour |
Power at rated PTO speed | 43.17 hp
32.2 kW |
Fuel use | 2.9 gal/hour
11.0 l/hour |
Drawbar performance | |
Max power | 45.95 hp
34.3 kW |
Fuel use | 3.8 gal/hour
14.4 l/hour |
Gear 3L used for power test. | |
Max pull | 7667 lbs
3477 kg |
Gear 2L used for pull test. | |
Photos

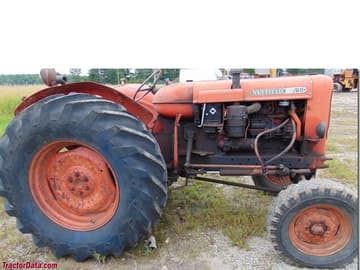

Nuffield 10/60
Nuffield 10/60
Nuffield 10/60
