TractorData Logo
TractorData

Oliver 1250

The Oliver 1250 is a tractor produced by Oliver. It is equipped with a 116 ci 1.9 L engine. Transmission: 6 forward and 2 reverse. Operating weight: 3180 to 3280 pounds.

Fuel & Capacities
13 gal 49.2 L
Transmission
6 forward and 2 reverse
Operating Weight
3180 to 3280 pounds

Overview

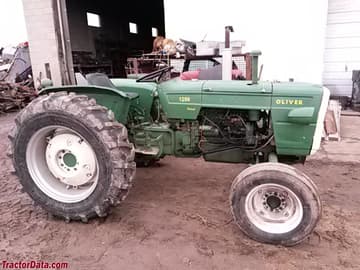

Oliver 1250 tractor photo
1965 - 1969 Utility tractorFiat built Utility tractor Fiat built
Production
Distributor
Oliver
Manufacturer
Fiat
Utility tractor
Built in Italy
The Oliver 1250 was similar to the Fiat 415.
Oliver 1250 Transmission
6-speed partially synchronized
Transmission details ...
Oliver 1250 Power
Diesel PTO (claimed)
38.5 hp 28.7 kW
Gasoline PTO (claimed)
35 hp 26.1 kW
Mechanical
Two-wheel drive
Differential lock
mechanical rear
Steering
manual
Steering
power OptOptional
Mechanical band brakes
Open operator station.
Capacity
Fuel
13 gal 49.2 L
Hydraulic system
3.25 gal 12.3 L
Hydraulics
Capacity
3.25 gal 12.3 L
Valves
1
Tractor hitch
Rear Type
I
Control
position and draft control
Rear lift
2650 lbs 1202 kg
Power Take-off (PTO)
Rear PTO
live *Two-stage clutch
Rear PTO Type
540
Dimensions & Tires
Wheelbase
75.8 inches 192 cm
Weight
3180 to 3280 pounds
Front tire
6.00-16
Rear tire
12.4/11-28
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
generator
Batteries
2
Battery volts
12
References
1250 references literature
New 1250 Tractor published in 1965, by Oliver
1250 Utility Tractor published in 1966, by Oliver
Utility 1250 published in 1968, by Oliver
1450 - A Heavy-Duty Utility Tractor with 55 Certified pto Horsepower published in 1967, by Oliver
1550 Row Crop, Row Crop Utility, Wheatland/Ricefield Models published in 1967, by Oliver
Farm Loaders published in 1969, by Oliver

Engine

Engine options
Fiat 2.3L 4-cyl diesel
Fiat 1.9L 4-cyl gasoline

Engine Detail — 138.5 ci / 2.3 L Diesel

Manufacturer
Fiat
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
138.5 ci 2.3 L
Bore/Stroke
3.31x4.00 inches 84 x 102 mm
Air cleaner
oil bath
Compression
21.5:1
Rated RPM
2500
Starter volts
24
Oil capacity
10 qts 9.5 L
Coolant capacity
11 qts 10.4 L

Engine Detail — 116 ci / 1.9 L Gasoline

Manufacturer
Fiat
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled
Displacement
116 ci 1.9 L
Bore/Stroke
3.25x3.50 inches 83 x 89 mm
Air cleaner
oil bath
Compression
7.5:1
Rated RPM
2500
Starter volts
24
Oil capacity
6.25 qts 5.9 L
Coolant capacity
11 qts 10.4 L

Transmission

Transmission — 6 forward and 2 reverse partially synchronized

Type
partially synchronized
Gears
6 forward and 2 reverse
Oil capacity
14 qts 13.2 L
Gears 2/3 and 5/6 are synchronized.
With 12.4-28 rear tires.
1250 partially synchronized speeds

Dimensions

Oliver 1250 Tires
Ag front
6.00-16
Ag rear
12.4/11-28
Ag rear
13.6-28
14.9-28
Dimensions
Wheelbase
75.8 inches 192 cm
Length
119 inches 302 cm
Width
59.9 inches 152 cm
Height (steering wheel)
58.8 inches 149 cm
Gas Shipping weight
3180 lbs 1442 kg
Diesel Shipping weight
3280 lbs 1487 kg
Ground clearance
18.75 inches 47 cm

Attachments

Attachment overview
Oliver 1210 loader
Oliver 1510 loader
Oliver 1514 loader

Photos

Oliver 1250

Oliver 1250

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Oliver 1250.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Oliver 1250 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Oliver 1250.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
