Oliver G955

The Oliver G955 is a tractor produced by Oliver. It is equipped with a 425 ci 7.0 L engine. The rated power output is 98.8 hp 73.7 kW. Transmission: Hydraul-Shift. Operating weight: 11900 lbs 5397 kg.

Engine Power
98.8 hp 73.7 kW
Fuel & Capacities
40 gal (diesel) 151.4 L
Transmission
Hydraul-Shift
Operating Weight
11900 lbs 5397 kg

Oliver G955 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Oliver G955 tractor photo
Row-Crop tractor
Row-Crop tractor

Series map: G955G1355107.8hp*163.3hp**Estimated engine power for comparison only.

Note: the Oliver model G955 is the same as the Minneapolis-Moline G955. The following data is from the G955 listing.
Production
Manufacturer
Oliver (a part of White)
Row-Crop tractor
Original price was $13,700 in 1974
Oliver G955 Power
Drawbar (claimed)
80 hp 59.7 kW
Diesel PTO (claimed)
97 hp 72.3 kW
LP-gas PTO (claimed)
92 hp 68.6 kW
Drawbar (tested)
80.19 hp 59.8 kW
PTO (tested)
98.8 hp 73.7 kW
Performance test details ...
Mechanical
Two-wheel drive
Power steering
Disc brakes
Open operator station. Cab optional.
Capacity
Fuel
40 gal (diesel) 151.4 L
39 gal (LP-Gas) 147.6 L
Hydraulic system
6.8 gal 25.7 L
Hydraulics
Type
closed center
Capacity
6.8 gal 25.7 L
Pump flow
20 gpm 75.7 lpm
Tractor hitch
Rear Type
II
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000 (1.375)
Dimensions & Tires
Wheelbase
111 inches 281 cm
Weight
11900 lbs 5397 kg
Front tire
10.00-16
Rear tire
18.4-38
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Series map: G955G1355107.8hp*163.3hp**Estimated engine power for comparison only.

Note: the Oliver model G955 is the same as the Minneapolis-Moline G955. The following data is from the G955 listing.
Engine options
Minneapolis-Moline 7.4L 6-cyl diesel
Minneapolis-Moline 7.0L 6-cyl LP-gas

Engine Detail — 451 ci / 7.4 L Diesel

Manufacturer
Minneapolis-Moline
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
451 ci 7.4 L
Bore/Stroke
4.375x5.00 inches 111 x 127 mm
Air cleaner
dry
Compression
15.2:1
Rated RPM
1800
Starter
electric
Starter volts
12
Oil capacity
10 qts 9.5 L
Coolant capacity
33 qts 31.2 L

Engine Detail — 425 ci / 7.0 L

Manufacturer
Minneapolis-Moline
Configuration
6-cylinder, liquid-cooled
LP-gas
Displacement
425 ci 7.0 L
Bore/Stroke
4.25x5.00 inches 108 x 127 mm
Air cleaner
dry
Compression
9:1
Rated RPM
1800
Starter
electric
Starter volts
12
Oil capacity
10 qts 9.5 L
Coolant capacity
30 qts 28.4 L

Transmission

Series map: G955G1355107.8hp*163.3hp**Estimated engine power for comparison only.

Note: the Oliver model G955 is the same as the Minneapolis-Moline G955. The following data is from the G955 listing.
Transmission options
6-speed gear
18-speed three-range power shift

Transmission — 6 forward and 2 reverse gear

Type
gear
Gears
6 forward and 2 reverse
Clutch
355.6mm dry disc
Oil capacity
43 qts 40.7 L
With 18.4-38 rear tires.
G955 gear speeds

Transmission — Hydraul-Shift

Transmission
Hydraul-Shift
Type
three-range power shift
Gears
18 forward and 6 reverse
Clutch
355.6mm dry disc
Oil capacity
43 qts 40.7 L
Six gears (1-6) with a three-range power shift (under, direct, and over drive).
With 18.4-38 rear tires.

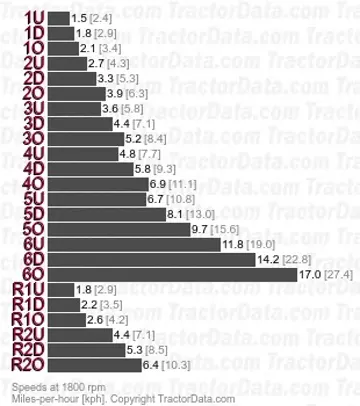

G955 Hydraul-Shift three-range power shift speeds

Dimensions

Series map: G955G1355107.8hp*163.3hp**Estimated engine power for comparison only.

Note: the Oliver model G955 is the same as the Minneapolis-Moline G955. The following data is from the G955 listing.
Oliver G955 Tires
Ag front
10.00-16
Ag rear
18.4-38
Ag front
11.00-16
11.00L-15
Ag rear
23.1-30
23.1-34
20.8-38
20.8-34
18.4-34
16.9-38
15.5-38
Dimensions
Wheelbase
111 inches 281 cm
Length
175.5 inches 445 cm
Width
95.9 inches*Minimum width. 243 cm
Height (steering wheel)
85.5 inches 217 cm
Height (hood)
71 inches 180 cm
Operating weight
11900 lbs 5397 kg
Clearance (front axle)
21.5 inches 54 cm
Front tread
61 to 85 inches 154 to 215 cm
Rear tread
57 to 119.5 inches 144 to 303 cm

Tests

Series map: G955G1355107.8hp*163.3hp**Estimated engine power for comparison only.

Note: the Oliver model G955 is the same as the Minneapolis-Moline G955. The following data is from the G955 listing.
Nebraska Tractor Test 1161
Diesel 18-speed 2WD June 26 - August 26, 1974 Link: Nebraska Tractor Test 1161 file
PTO performance
Power at rated engine speed
98.8 hp 73.7 kW
Fuel use
7.2 gal/hour 27.3 l/hour
Power at rated PTO speed
98.82 hp 73.7 kW
Fuel use
7.1 gal/hour 26.9 l/hour
Drawbar performance
Max power
80.19 hp 59.8 kW
Fuel use
7.1 gal/hour 26.9 l/hour
Gear 4-Direct used for power test.
Max pull
8374 lbs 3798 kg
Gear 2-Direct used for pull test.

Photos

Oliver G955 row-crop tractor.

Oliver G955 row-crop tractor.

Oliver G955 operator station and controls.

Oliver G955 operator station and controls.
