Oliver 1250-A

The Oliver 1250-A is a tractor produced by Oliver. It is equipped with a 142.8 ci 2.3 L engine. Transmission: 6 forward and 2 reverse. Operating weight: 3120 lbs 1415 kg.

Fuel & Capacities
Diesel
Transmission
6 forward and 2 reverse
Operating Weight
3120 lbs 1415 kg

Overview

Oliver 1250-A tractor photo
1969 Utility tractorFiat built Utility tractor Fiat built
Production
Distributor
Oliver
Manufacturer
Fiat
Utility tractor
Built in Italy
Original price was $4,600 in 1971
Oliver 1250-A Engine
Fiat 2.3L 3-cyl diesel
Engine details ...
Oliver 1250-A Transmission
6-speed gear
Transmission details ...
Oliver 1250-A Power
PTO (claimed)
38.5 hp 28.7 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Tractor hitch
Rear Type
II/I
Power Take-off (PTO)
Rear PTO
live
Rear PTO Type
540 (1.375)
Dimensions & Tires
Weight
3120 lbs 1415 kg
Full dimensions and tires ...

Engine

Engine Detail — 142.8 ci / 2.3 L Diesel

Manufacturer
Fiat
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
142.8 ci 2.3 L
Bore/Stroke
3.74x4.33 inches 95 x 110 mm
Rated RPM
2400
Starter volts
12

Transmission

Transmission — 6 forward and 2 reverse gear

Type
gear
Gears
6 forward and 2 reverse

Dimensions

Oliver 1250-A Tires
Dimensions
Weight
3120 lbs 1415 kg

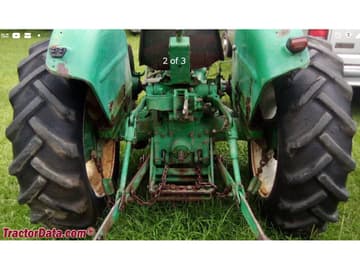

Photos

Oliver 1250-A

Oliver 1250-A

Oliver 1250-A

Oliver 1250-A
