Oliver 1265

The Oliver 1265 is a tractor produced by Oliver. It is equipped with a 158.1 ci 2.6 L engine. Transmission: 9 forward and 3 reverse. Operating weight: 3710 to 4300 pounds.

Fuel & Capacities
14.25 gal 53.9 L
Transmission
9 forward and 3 reverse
Operating Weight
3710 to 4300 pounds

Overview

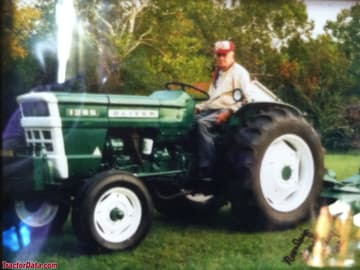

Oliver 1265 tractor photo
1971 - 1975 Utility tractorFiat built Utility tractor Fiat built
Production
Distributor
Oliver (a part of White)
Manufacturer
Fiat
Utility tractor
Original price was $6,900 in 1975
Oliver 1265 Engine
Fiat 2.6L 3-cyl diesel
Engine details ...
Oliver 1265 Power
PTO (claimed)
41 hp 30.6 kW
Mechanical
Two- or four-wheel drive
Final drives
planetary
Mechanical band brakes
Open operator station.
Capacity
Fuel
14.25 gal 53.9 L
Hydraulic system
4.5 gal 17.0 L
Hydraulics
Type
open center
Capacity
4.5 gal 17.0 L
Pressure
2133 psi 147.1 bar
Pump flow
5.76 gpm 21.8 lpm
Tractor hitch
Rear Type
II/I
Control
position and draft control
Rear lift
2660 lbs 1206 kg
Power Take-off (PTO)
Rear PTO
live *Dual-stage clutch
Rear PTO Type
540/ground
Engine RPM
540@1970
Dimensions & Tires
Wheelbase
75.5 inches 191 cm
Weight
3710 to 4300 pounds
Front tire
6.00-16
Rear tire
13.6-28
Full dimensions and tires ...
Electrical
Charging system
alternator
Charging amps
42
Battery volts
12
References
1265 references literature
1265/1365 Row Crop, Utility, 4-Wheel Drive Tractors published by Oliver
1975 Farm Equipment Line published by White

Engine

Engine Detail — 158.1 ci / 2.6 L Diesel

Manufacturer
Fiat
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
158.1 ci 2.6 L
Bore/Stroke
3.94x4.33 inches 100 x 110 mm
Air cleaner
oil bath
Pre-heating
thermostart
Compression
17:1
Rated RPM
2400
Starter volts
12
Oil capacity
8 qts 7.6 L
Coolant capacity
13.5 qts 12.8 L

Transmission

Transmission options
6-speed partially synchronized
9-speed creeper

Transmission — 6 forward and 2 reverse partially synchronized

Type
partially synchronized
Gears
6 forward and 2 reverse
Clutch
254mm dry disc
Oil capacity
18 qts 17.0 L
Synchronized shifts between gears 2-3 and 5-6.
With 13.6-28 rear tires.
1265 partially synchronized speeds
Transmission
Type
creeper
Gears
9 forward and 3 reverse
1265 creeper speeds

Dimensions

Oliver 1265 Tires
2WD Ag front
6.00-16
4WD Ag front
7.50x20
2WD Ag rear
13.6-28
4WD Ag rear
12.4-28
2WD Ag front
7.50-16
2WD Ag rear
12.4-28
2WD Ag rear
14.9-28
Dimensions
Wheelbase
75.5 inches 191 cm
2WD Length
115 inches 292 cm
4WD Length
119.5 inches 303 cm
Width
62.5 inches*Minimum width 158 cm
2WD Height (steering wheel)
56.6 inches 143 cm
2WD Shipping weight
3710 lbs 1682 kg
4WD Shipping weight
4300 lbs 1950 kg
2WD Clearance (front axle)
18.25 inches 46 cm
4WD Clearance (front axle)
14 inches 35 cm
2WD Front tread
50.4 to 78 inches 128 to 198 cm
4WD Front tread
55/59 inches 139/149 cm
Rear tread
47.25 to 74.75 inches 120 to 189 cm

Attachments

Attachment overview
Cockshutt 1522 loader
Cockshutt 1524 loader

Photos

Oliver 1265

Oliver 1265

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Oliver 1265.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Oliver 1265 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Oliver 1265.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
