Oliver 1355

The Oliver 1355 is a tractor produced by Oliver. It is equipped with a 190.4 ci 3.1 L engine. Transmission: 12 forward and 4 reverse. Operating weight: 4410 to 4940 pounds.

Fuel & Capacities
14.25 gal 53.9 L
Transmission
12 forward and 4 reverse
Operating Weight
4410 to 4940 pounds

Overview

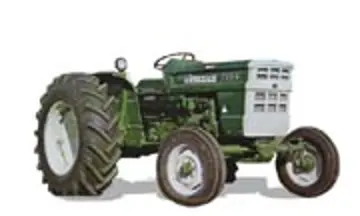

Oliver 1355 tractor photo
1969 - 1971 55 SeriesUtility tractorFiat built 55 Series Utility tractor Fiat built
Production
Distributor
Oliver
Manufacturer
Fiat
Utility tractor
Original price was $5,500 in 1971
Oliver 1355 Engine
Fiat 3.1L 4-cyl diesel
Engine details ...
Oliver 1355 Power
PTO (claimed)
51 hp 38.0 kW
Mechanical
Two- or four-wheel drive
Steering
manual
Steering
power OptOptional
Mechanical band brakes
Open operator station.
Capacity
Fuel
14.25 gal 53.9 L
Hydraulic system
4.75 gal 18.0 L
Hydraulics
Capacity
4.75 gal 18.0 L
Pressure
2133 psi 147.1 bar
Pump flow
5.76 gpm 21.8 lpm
12 gpm*Optional, additional pump. 45.4 lpm
Tractor hitch
Rear Type
II/I
Control
position and draft control
Rear lift
3100 lbs 1406 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540 (1.375)
Dimensions & Tires
2WD Wheelbase
81.5 inches 207 cm
4WD Wheelbase
78 inches 198 cm
Weight
4410 to 4940 pounds
Front tire
6.00-16
Rear tire
14.9-28
Full dimensions and tires ...
Electrical
Charging system
alternator
Charging amps
42
Batteries
2
Battery volts
6
References
1355 references literature
1255/1355 Utility, High Clearance, 4-Wheel Drive, Special models published in 1970, by Oliver
A Modern Line-Up in Power published in 1969, by Oliver

Engine

Engine Detail — 190.4 ci / 3.1 L Diesel

Manufacturer
Fiat 8045
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled inline
Displacement
190.4 ci 3.1 L
Bore/Stroke
3.74x4.33 inches 95 x 110 mm
Fuel system
direct injection
Air cleaner
oil bath
Compression
17:1
Rated RPM
2400
Starter volts
12
Oil capacity
12 qts 11.4 L
Coolant capacity
14 qts 13.2 L

Transmission

Transmission options
8-speed gear
12-speed creeper

Transmission — 8 forward and 2 reverse gear

Type
gear
Gears
8 forward and 2 reverse
Clutch
279.4mm dry disc
Oil capacity
19 qts 18.0 L
With 14.9-30 rear tires.

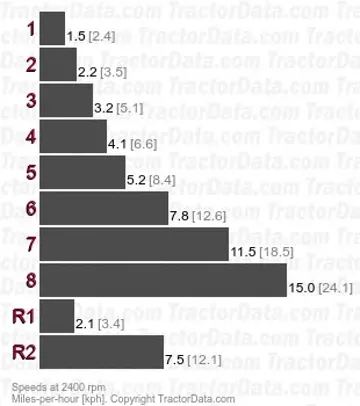

1355 gear speeds
Transmission
Type
creeper
Gears
12 forward and 4 reverse

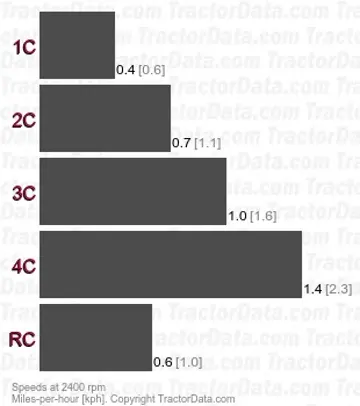

1355 creeper speeds

Dimensions

Oliver 1355 Tires
2WD Ag front
6.00-16
4WD Ag front
9.50-24
2WD Ag rear
14.9-28
4WD Ag rear
16.9-30
Ag front
7.50-16
7.50-10
Ag rear
14.9-30
16.9-30
18.4-16A
Dimensions
2WD Wheelbase
81.5 inches 207 cm
4WD Wheelbase
78 inches 198 cm
2WD Length
122 inches 309 cm
4WD Length
127 inches 322 cm
2WD Width
70 inches 177 cm
4WD Width
72 inches 182 cm
2WD Height (steering wheel)
60.625 inches 153 cm
4WD Height (steering wheel)
63.25 inches 160 cm
2WD Shipping weight
4410 lbs 2000 kg
4WD Shipping weight
4940 lbs 2240 kg
2WD Clearance (front axle)
18.875 inches 47 cm
4WD Clearance (front axle)
11 inches 27 cm

Photos

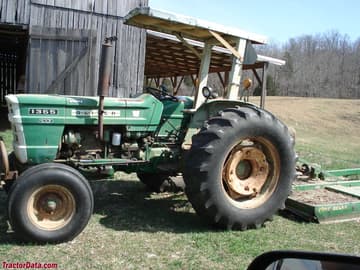

Oliver 1355

Oliver 1355

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Oliver 1355.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Oliver 1355 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Oliver 1355.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
