Oliver 1365
The Oliver 1365 is a tractor produced by Oliver. It is equipped with a 210.9 ci 3.5 L engine. Transmission: 12 forward and 3 reverse. Operating weight: 4410 to 4940 pounds.
Fuel & Capacities
14.25 gal
53.9 L
Transmission
12 forward and 3 reverse
Operating Weight
4410 to 4940 pounds
Oliver 1365 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1971 - 1975
Utility tractorFiat built |
|---|---|
1971 - 1975 | |
Utility tractor | |
Fiat built | |
1971 - 1975 | |
|---|---|
Utility tractor | |
Fiat built |
Production | |
|---|---|
Distributor | Oliver (a part of White) |
Manufacturer | Fiat |
Utility tractor | |
Original price was $9,000 in 1975 | |
The White/Oliver 1365 was based on the Fiat 600 and Fiat 640. | |
Oliver 1365 Engine | |
|---|---|
Fiat 3.5L 4-cyl diesel | |
Engine details ...  |
Oliver 1365 Power | |
|---|---|
PTO (claimed) | 55 hp
41.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Mechanical band brakes | |
Open operator station. | |
Capacity | |
|---|---|
Fuel | 14.25 gal
53.9 L |
Hydraulic system | 4.5 gal
17.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 4.5 gal
17.0 L |
Pressure | 2133 psi
147.1 bar |
Pump flow | 5.76 gpm
21.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Rear lift | 3100 lbs
1406 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@1970 |
Dimensions & Tires | |
|---|---|
Wheelbase | 80.8 inches
205 cm |
Weight | 4410 to 4940 pounds |
Front tire | 7.50-16 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 42 |
Battery volts | 12 |
References | |
|---|---|
 | |
1265/1365 Row Crop, Utility, 4-Wheel Drive Tractors published by Oliver | |
1975 Farm Equipment Line published by White |
Engine
| 1971 - 1975
Utility tractorFiat built |
|---|---|
1971 - 1975 | |
Utility tractor | |
Fiat built | |
1971 - 1975 | |
|---|---|
Utility tractor | |
Fiat built |
Engine Detail — 210.9 ci / 3.5 L Diesel
Manufacturer | Fiat |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 210.9 ci
3.5 L |
Bore/Stroke | 3.94x4.33 inches
100 x 110 mm |
Air cleaner | oil bath |
Pre-heating | thermostart |
Compression | 17:1 |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 12 qts
11.4 L |
Coolant capacity | 14 qts
13.2 L |
Transmission
| 1971 - 1975
Utility tractorFiat built |
|---|---|
1971 - 1975 | |
Utility tractor | |
Fiat built | |
1971 - 1975 | |
|---|---|
Utility tractor | |
Fiat built |
Transmission options | |
|---|---|
8-speed partially synchronized | |
12-speed creeper |
Transmission — 8 forward and 2 reverse partially synchronized
Type | partially synchronized |
Gears | 8 forward and 2 reverse |
Oil capacity | 19 qts
18.0 L |
Synchronized shifts between gears 3-4 and 7-8. | |
With 16.9-30 rear tires. | |
 | |
Transmission | |
Type | creeper |
Gears | 12 forward and 3 reverse |
 | |
Dimensions
| 1971 - 1975
Utility tractorFiat built |
|---|---|
1971 - 1975 | |
Utility tractor | |
Fiat built | |
1971 - 1975 | |
|---|---|
Utility tractor | |
Fiat built |
Oliver 1365 Tires | |
|---|---|
2WD Ag front | 7.50-16 |
4WD Ag front | 9.50x24 |
2WD Ag rear | 16.9-30 |
4WD Ag rear | 16.9-30 |
2WD Ag front | 6.00x16 |
2WD Ag rear | 14.9-28 |
2WD Ag rear | 14.9-30 |
Dimensions | |
|---|---|
Wheelbase | 80.8 inches
205 cm |
Utility Length | 122 inches
309 cm |
Row-crop Length | 125 inches
317 cm |
4WD Length | 127 inches
322 cm |
Utility Width | 70 inches
177 cm |
Row-crop Width | 72 inches
182 cm |
4WD Width | 72 inches
182 cm |
Utility Clearance (front axle) | 18.9 inches
48 cm |
Row-crop Clearance (front axle) | 25.75 inches
65 cm |
4WD Clearance (front axle) | 11 inches
27 cm |
2WD Front tread | 52 to 79.5 inches
132 to 201 cm |
4WD Front tread | 55/59 inches
139/149 cm |
Rear tread | 55.1 to 78.75 inches
139 to 200 cm |
Oliver 1365 Weight | |
|---|---|
Utility Shipping | 4410 lbs
2000 kg |
Row-crop Shipping | 4550 lbs
2063 kg |
4WD Shipping | 4940 lbs
2240 kg |
Oliver 1365 Height | |
|---|---|
Utility Steering wheel | 60.6 inches
153 cm |
Row-crop Steering wheel | 67.5 inches
171 cm |
4WD Steering wheel | 63.25 inches
160 cm |
Attachments
| 1971 - 1975
Utility tractorFiat built |
|---|---|
1971 - 1975 | |
Utility tractor | |
Fiat built | |
1971 - 1975 | |
|---|---|
Utility tractor | |
Fiat built |
Attachment overview | |
|---|---|
Cockshutt 1522 loader | |
Cockshutt 1524 loader |
Photos

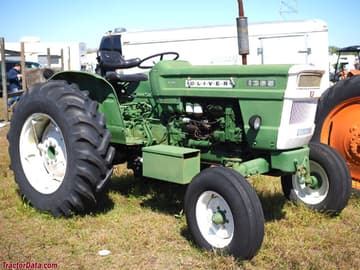

Two-wheel drive Oliver 1365, right side.
Four-wheel drive Oliver 1365, left side.
