oliver 1600

OverviewEngineTransmissionDimensionsTestsPhotos
Oliver 1600 Series A tractor photo
1962 - 1964 Model year 1962-19631963-1964 4-Digit SeriesRow-Crop tractor
1962 - 1964
Model year 1962-19631963-1964
4-Digit Series
Row-Crop tractor
1962 - 1964
Model year 1962-19631963-1964
4-Digit Series
Row-Crop tractor
1962 - 1964
Model year 1962-19631963-1964
4-Digit Series
Row-Crop tractor
Tractor Tests
NTTL 840: diesel 12-speed 2WD
NTTL 841: gasoline 12-speed 2WD
Nebraska Tractor Test 840

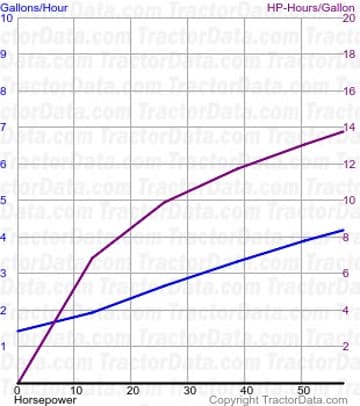

1600 Series A fuel use from test 840
1600 Series A fuel use from test 840
1600 Series A fuel use from test 840
1600 Series A fuel use from test 840
Nebraska Tractor Test 840
Diesel 12-speed 2WD May 29 - June 13, 1963 Link: Nebraska Tractor Test 840 file
PTO performance
Power at rated engine speed
57.95 hp 43.2 kW
Fuel use
4.2 gal/hour 15.9 l/hour
Power at rated PTO speed
54.79 hp 40.9 kW
Fuel use
3.9 gal/hour 14.8 l/hour
Drawbar performance
Max power
46.90 hp 35.0 kW
Fuel use
4.0 gal/hour 15.1 l/hour
Gear 4-HP used for power test.
Max pull
8,401 lbs 3810 kg
Gear 1-HP used for pull test.
Nebraska Tractor Test 841

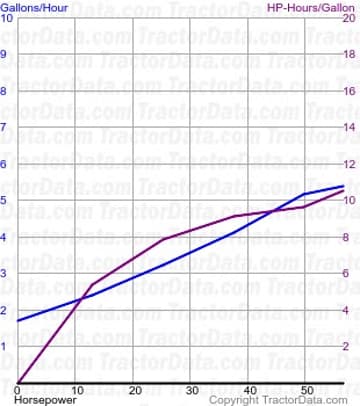

1600 Series A fuel use from test 841
1600 Series A fuel use from test 841
1600 Series A fuel use from test 841
1600 Series A fuel use from test 841
Nebraska Tractor Test 841
Gasoline 12-speed 2WD June 3 - 13, 1963 Link: Nebraska Tractor Test 841 file
PTO performance
Power at rated engine speed
56.50 hp 42.1 kW
Fuel use
5.4 gal/hour 20.4 l/hour
Power at rated PTO speed
51.18 hp 38.2 kW
Fuel use
5.0 gal/hour 18.9 l/hour
Drawbar performance
Max power
47.09 hp 35.1 kW
Fuel use
5.2 gal/hour 19.7 l/hour
Gear 4-HP used for power test.
Max pull
8,490 lbs 3851 kg
Gear 1-HP used for pull test.
