oliver 1655
 | 1969 - 1975
55 SeriesRow-Crop tractor | 1969 - 1975 | 55 Series | Row-Crop tractor |
|---|---|---|---|---|
1969 - 1975 | ||||
55 Series | ||||
Row-Crop tractor | ||||
1969 - 1975 | |
|---|---|
55 Series | |
Row-Crop tractor |
Transmission options | |
|---|---|
18-speed partial power shift | |
6-speed helical gear |
Transmission | |
|---|---|
Transmission | Hydraul-Shift |
Type | partial power shift |
Gears | 18 forward and 6 reverse |
Clutch | 304.8mm dry disc |
The Hydraul-Shift transmission allows a three-speed power shift between over, direct, and under drive for each gear. | |

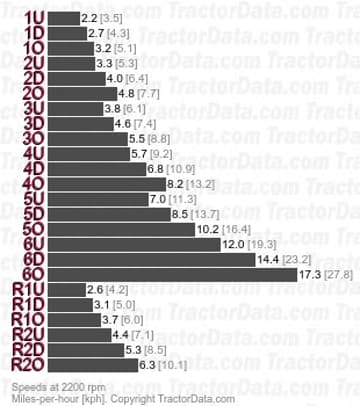

Speeds | |
|---|---|
With 16.9-38 rear tires. | |
 |

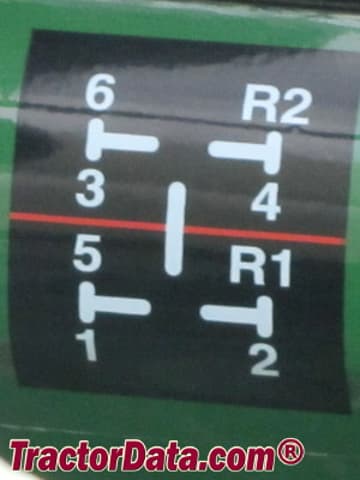

Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Type | helical gear |
Gears | 6 forward and 2 reverse |
Clutch | 304.8mm dry disc |
Oil capacity | 32 qts
30.3 L |

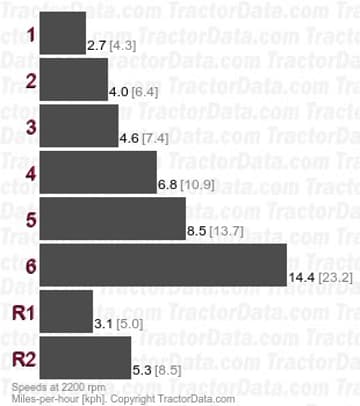

Speeds | |
|---|---|
With 16.9-38 rear tires. | |
 |
