Oliver 1750
The Oliver 1750 is a tractor produced by Oliver. It is equipped with a 310 ci 5.1 L engine. The listed engine power is 80.05 hp 59.7 kW. Transmission: Hydraul-Shift. Operating weight: 8660 to 10660 pounds.
Engine Power
80.05 hp
59.7 kW
Fuel & Capacities
34.5 gal
130.6 L
Transmission
Hydraul-Shift
Operating Weight
8660 to 10660 pounds
Overview
 | 1966 - 1969
50 SeriesRow-Crop tractor
50 Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Oliver |
Row-Crop tractor | |
Built in Charles City, Iowa, USA | |
Original price was $7,400 in 1969 | |
Oliver 1750 Power | |
|---|---|
PTO (claimed) | 80 hp
59.7 kW |
Plows | 5-6 |
Drawbar (tested) | 67.05 hp
50.0 kW |
PTO (tested) | 80.31 hp
59.9 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | power assist |
Differential mechanical disc brakes | |
Open operator station. Oliver Continental Cab optional with available air-conditioning. | |
Capacity | |
|---|---|
Gas Fuel | 34.5 gal
130.6 L |
Diesel Fuel | 31.5 gal
119.2 L |
78 gal*Capacity of optional wheel-guard tanks.
295.2 L | |
Hydraulic system | 5 gal
18.9 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5 gal
18.9 L |
Tractor hitch | |
|---|---|
Rear Type | II |
III OptOptional | |
Rear lift (at 24"/610mm) | 6000 lbs
2721 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Engine RPM | 1000@2400 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 103 inches
261 cm |
4WD Wheelbase | 86.25 inches
219 cm |
Wheatland Wheelbase | 97.25 inches
247 cm |
Weight | 8660 to 10660 pounds |
Front tire | 7.50-15 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
1750/1850 Row Crop, 4-Wheel Drive, Wheatland/Ricefield published in 1969, by Oliver | |
5-6 Plow 1750 published in 1968, by Oliver | |
Farm Loaders published in 1969, by Oliver |
Engine
Engine options | |
|---|---|
Waukesha-Oliver 4.6L 6-cyl gasoline | |
Waukesha-Oliver 5.1L 6-cyl diesel |
Engine Detail — 283 ci / 4.6 L Gasoline
Manufacturer | Waukesha-Oliver |
Fuel Type | Gasoline |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 283 ci
4.6 L |
Bore/Stroke | 3.875x4.00 inches
98 x 102 mm |
Air cleaner | dry with pre-cleaner |
Compression | 8.5:1 |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 8 qts
7.6 L |
Coolant capacity | 20 qts
18.9 L |
Engine Detail — 310 ci / 5.1 L Diesel
Manufacturer | Waukesha-Oliver |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 310 ci
5.1 L |
Bore/Stroke | 3.875x4.375 inches
98 x 111 mm |
Air cleaner | dry with pre-cleaner |
Compression | 16:1 |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 12 qts
11.4 L |
Transmission
Transmission options | |
|---|---|
6-speed unsynchronized gear | |
12-speed partial power shift | |
18-speed partial power shift |
Transmission — 6 forward and 2 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 6 forward and 2 reverse |
With 18.4-34 rear tires. | |
 | |
Transmission — Oliver Hydra-Power
Transmission | Oliver Hydra-Power |
Type | partial power shift |
Gears | 12 forward and 4 reverse |
Clutch | dry disc |
Six gears (1-6) with two-range Hydra-Power power shift. Hydra-Power provdes a lower ratio and clutchless shifting between the Hydra-Power gear or direct drive. | |
 | |
Transmission — Hydraul-Shift
Transmission | Hydraul-Shift |
Type | partial power shift |
Gears | 18 forward and 6 reverse |
Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive. | |
Dimensions
Oliver 1750 Tires | |
|---|---|
Ag front | 7.50-15 |
Ag rear | 18.4-34 |
Ag front | 6.50-16 |
7.50-16 | |
7.50-18 | |
11.00L-15 | |
11.00L-16 | |
Ag rear | 20.8-38 |
14.9-38 | |
18.4-38 | |
16.9-38 | |
23.1-26 | |
16.9-34 | |
15.5-38 | |
Dimensions | |
|---|---|
2WD Wheelbase | 103 inches
261 cm |
4WD Wheelbase | 86.25 inches
219 cm |
Wheatland Wheelbase | 97.25 inches
247 cm |
2WD Length | 159.5 inches
405 cm |
4WD Length | 152.5 inches
387 cm |
2WD Width | 80.625 inches
204 cm |
4WD Width | 80.625 inches
204 cm |
Wheatland Width | 88.875 inches
225 cm |
Ground clearance | 25.5 inches
64 cm |
2WD Front tread | 9.25/14.5 inches
23/36 cm |
2WD Front tread | 68 to 89.5 inches
172 to 227 cm |
4WD Front tread | 66/70.75/80 inches
167/179/203 cm |
Wheatland Front tread | 69.5 inches
176 cm |
2WD Rear tread | 68 to 89.5 inches
172 to 227 cm |
4WD Rear tread | 68 to 89.5 inches
172 to 227 cm |
Wheatland Rear tread | 75.5 to 83.5 inches
191 to 212 cm |
Oliver 1750 Weight | |
|---|---|
2WD Shipping | 8660 lbs
3928 kg |
4WD Shipping | 10660 lbs
4835 kg |
Operating | 9760 lbs
4427 kg |
Ballasted | 12150 lbs
5511 kg |
Oliver 1750 Height | |
|---|---|
2WD Steering wheel | 85.125 inches
216 cm |
4WD Steering wheel | 85.5 inches
217 cm |
Wheatland Steering wheel | 85.25 inches
216 cm |
Tests
Tractor Tests | |
|---|---|
NTTL 961: gasoline Hydra-Power 2WD | |
NTTL 962: diesel Hydra-Power 2WD |
Nebraska Tractor Test 961 | |
|---|---|
Gasoline Hydra-Power 2WD
5/22/1967
Link: Nebraska Tractor Test 961 file | |
PTO performance | |
Power at rated engine speed | 80.31 hp
59.9 kW |
Fuel use | 7.0 gal/hour
26.5 l/hour |
Drawbar performance | |
Max power | 67.05 hp
50.0 kW |
Fuel use | 7.0 gal/hour
26.5 l/hour |
Gear 4-Hydra used for power test. | |
Max pull | 9,697 lbs
4398 kg |
Gear 2-Hydra used for pull test. | |
Nebraska Tractor Test 962 | |
|---|---|
Diesel Hydra-Power 2WD
May 22 - June 12, 1967
Link: Nebraska Tractor Test 962 file | |
PTO performance | |
Power at rated engine speed | 80.05 hp
59.7 kW |
Fuel use | 5.4 gal/hour
20.4 l/hour |
Drawbar performance | |
Max power | 65.28 hp
48.7 kW |
Fuel use | 5.3 gal/hour
20.1 l/hour |
Gear 4-Hydra used for power test. | |
Max pull | 9,929 lbs
4503 kg |
Gear 2-Hydra used for pull test. | |
Attachments
Attachment overview | |
|---|---|
Oliver 1610 loader | |
Oliver 1810 loader |
Photos

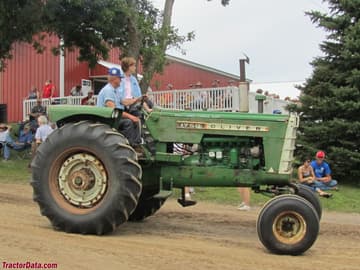

Two-wheel drive Oliver 1750.
Four-wheel drive Oliver 1750.
Recommended Implements & Sizing Guide
Engineering recommendations for Oliver 1750 based on its 80.05 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Oliver 1750.
Estimated Continuous Field Runtime: 8.3 hrs
Approximately 8.3 hours of continuous field operation at ~75% rated power on a full tank (34.5 gal / 130.6 L).
Estimated 75% Load Fuel Burn~4.2 gal/hr (15.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Oliver 1750 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Oliver 1750.
Converted Equivalents:
Horsepower (HP)80 hp
Kilowatts (kW)59.7 kW
Metric Horsepower (PS / CV)81.2 PS
Direct Competitor Comparison
Compare Oliver 1750 against same-era industry alternatives in the same horsepower class.
Current Model
Oliver
Oliver 1750
Engine Power:80.05 hp
59.7 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 560
Engine Power:72.5
Production Years:1958 - 1963
