Oliver 99

The Oliver 99 is a tractor produced by Oliver. It is equipped with a 302 ci 4.9 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 7073 lbs 3208 kg.

Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Operating Weight
7073 lbs 3208 kg

Overview

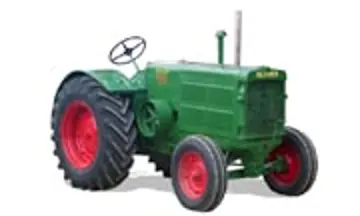

Oliver 99 tractor photo
1937 - 1953 Standard-tread tractor
Production
Manufacturer
Oliver
Standard-tread tractor
Factories
Charles City, Iowa, USA
South Bend, Indiana, USA
Original price was $3,500 in 1956
The Oliver 99 replaced the High-Compression Special 28-44. The low-compression version was the 90.
Variants
90
all-fuel engine
99
gasoline engine
Oliver 99 Transmission
4-speed gear
Transmission details ...
Oliver 99 Power
Plows
5
Drawbar (tested)
52.05 hp 38.8 kW
Belt (tested)
62.28 hp 46.4 kW
Performance test details ...
Mechanical
Two-wheel drive
Manual steering
Contracting band brakes
Open operator station.
Power Take-off (PTO)
Rear PTO
independent OptOptional
Rear PTO Type
540 (1.375)
Dimensions & Tires
Wheelbase
80 inches 203 cm
Weight
7073 lbs 3208 kg
Front tire
7.50-18
Rear tire
46x12
Full dimensions and tires ...
Belt Pulley
Diameter
16.75 inches 42 cm
Width
8.25 inches 20 cm
RPM
596
Speed
2600 ft/min 792.48 meters/min

Engine

Engine options
Oliver 7.3L 4-cyl gasoline
Waukesha-Oliver 4.9L 6-cyl diesel
Waukesha-Oliver 4.9L 6-cyl gasoline

Engine Detail — 443 ci / 7.3 L Gasoline

Manufacturer
Oliver
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled
Displacement
443 ci 7.3 L
Bore/Stroke
4.75x6.25 inches 121 x 159 mm
Air cleaner
oil bath
Compression
5.5:1
Rated RPM
1125
Starter type
hand-crank
electric OptOptional

Engine Detail — 302 ci / 4.9 L Diesel

Manufacturer
Waukesha-Oliver
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Available in styled 99, after 1952
Displacement
302 ci 4.9 L
Bore/Stroke
4.00x4.00 inches 102 x 102 mm
Rated RPM
1675

Engine Detail — 302 ci / 4.9 L Gasoline

Manufacturer
Waukesha-Oliver
Fuel Type
Gasoline
Configuration
6-cylinder, liquid-cooled
Available in styled 99, after 1952
Displacement
302 ci 4.9 L
Bore/Stroke
4.00x4.00 inches 102 x 102 mm
Rated RPM
1675

Transmission

Transmission — 4 forward and 1 reverse gear

Type
gear
Gears
4 forward and 1 reverse
Clutch
dry disc

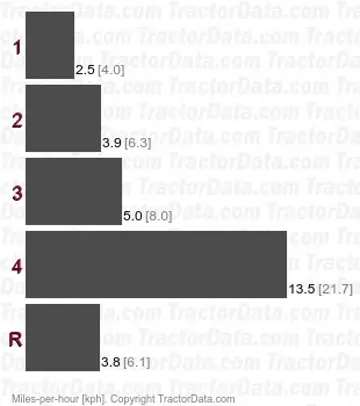

99 gear speeds

Dimensions

Oliver 99 Tires
Ag front
7.50-18
Ag rear
46x12 (steel)
12.75-28
13.25-28
Ag rear
13-30
14-30
15-30
Dimensions
Wheelbase
80 inches 203 cm
Length
125.75 inches 319 cm
Width
65 inches 165 cm
Height (hood)
59.5 inches 151 cm
Operating weight
7073 lbs 3208 kg
Ballasted weight
13110 lbs 5946 kg
Rear tread
52 inches 132 cm

Tests

Nebraska Tractor Test 451
Gasoline 4-speed 2WD September 29 - October 9, 1950 Link: Nebraska Tractor Test 451 file
Belt power (max)
62.28 hp 46.4 kW
Belt fuel use (max)
6.3 gal/hour 23.8 l/hour
Drawbar performance
Max power
52.05 hp 38.8 kW
Gear 2 used for power test.
Max pull
7,594 lbs 3444 kg
Gear 1 used for pull test.

Photos

Oliver 99

Oliver 99

Oliver 99

Oliver 99

Oliver 99

Oliver 99

Oliver 99 operator station and controls.

Oliver 99 operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Oliver 99.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Oliver 99 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Oliver 99.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
