Oliver 1755

The Oliver 1755 is a tractor produced by Oliver. It is equipped with a 283 ci 4.6 L engine. The rated power output is 86.93 hp 64.8 kW. Transmission: Hydraul-Shift. Operating weight: 9,600 lbs 4354 kg.

Engine Power
86.93 hp 64.8 kW
Fuel & Capacities
35 gal 132.5 L
Transmission
Hydraul-Shift
Operating Weight
9,600 lbs 4354 kg

Oliver 1755 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

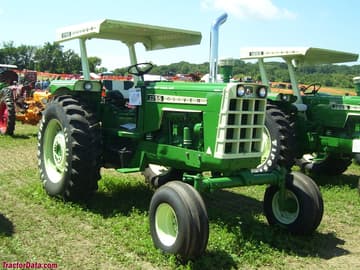

Oliver 1755 tractor photo
1970 - 1975 55 SeriesRow-Crop tractor
1970 - 1975
55 Series
Row-Crop tractor
Production
Manufacturer
Oliver (a part of White)
Row-Crop tractor
Original price was $11,500 in 1975
Variants
G850
similar Minneapolis-Moline model
Oliver 1755 Power
PTO (claimed)
86 hp 64.1 kW
Drawbar (tested)
73.87 hp 55.1 kW
PTO (tested)
86.93 hp 64.8 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic dry disc brakes
Open operator station. Optional two-post ROPS and cab.
Capacity
Fuel
35 gal 132.5 L
Hydraulic system
6.75 gal 25.5 L
Hydraulics
Type
closed center
Capacity
6.75 gal 25.5 L
Pump flow
20 gpm 75.7 lpm
Tractor hitch
Rear Type
I/II
II/III OptOptional
Rear lift
4,000 lbs 1814 kg
6,000 lbs (Cat 3) 2721 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540
1000
Dimensions & Tires
2WD Wheelbase
103 inches 261 cm
4WD Wheelbase
86.25 inches 219 cm
Weight
9,600 lbs 4354 kg
Front tire
7.50-15
Rear tire
18.4-34
Full dimensions and tires ...
References
1755 references literature
1755/1855/1955 published in 1970, by Oliver
1755/1855/1955 published in 1970, by White
A Modern Line-Up in Power published in 1969, by Oliver
1975 Farm Equipment Line published by White

Engine

Engine options
Waukesha-Oliver 5.1L 6-cyl diesel
Waukesha-Oliver 4.6L 6-cyl gasoline

Engine Detail — 310 ci / 5.1 L Diesel

Manufacturer
Waukesha-Oliver
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
310 ci 5.1 L
Bore/Stroke
3.875x4.375 inches 98 x 111 mm
Air cleaner
dry
Compression
16:1
Rated RPM
2400
Starter volts
12
Oil capacity
8 qts 7.6 L
Coolant capacity
20 qts 18.9 L

Engine Detail — 283 ci / 4.6 L Gasoline

Manufacturer
Waukesha-Oliver
Fuel Type
Gasoline
Configuration
6-cylinder, liquid-cooled
Displacement
283 ci 4.6 L
Bore/Stroke
3.875x4.00 inches 98 x 102 mm
Air cleaner
dry
Compression
8.5:1
Rated RPM
2400
Starter volts
12
Oil capacity
8 qts 7.6 L
Coolant capacity
20 qts 18.9 L

Transmission

Transmission options
6-speed gear
18-speed partial power shift

Transmission — 6 forward and 2 reverse gear

Type
gear
Gears
6 forward and 2 reverse
Clutch
305mm cerametallic disc
With 18.4-34 rear tires.
1755 gear speeds

Transmission — Hydraul-Shift

Transmission
Hydraul-Shift
Type
partial power shift
Gears
18 forward and 6 reverse
Clutch
305mm cerametallic disc
The Hydraul-Shift overs a power shift between over-, under-, and direct-drive for each gear.
With 18.4-34 rear tires.

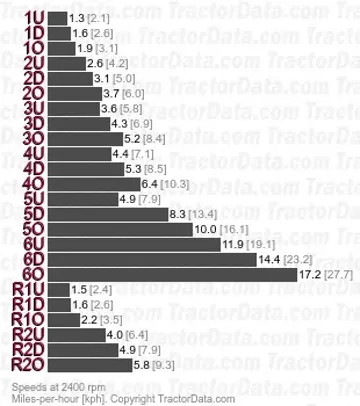

1755 Hydraul-Shift partial power shift speeds

Dimensions

Oliver 1755 Tires
2WD Ag front
7.50-15
4WD Ag front
13.6-24
Ag rear
18.4-34
2WD Ag front
7.50-18
2WD Ag front
9.50L-15
2WD Ag front
11.00L-15
4WD Ag front
14.9-24
4WD Ag front
14.9-26
Ag rear
23.1-30
20.8-34
18.4-38
16.9-38
16.9-34
15.5-38
12.4-42
Dimensions
2WD Wheelbase
103 inches 261 cm
4WD Wheelbase
86.25 inches 219 cm
2WD Length
159.5 inches 405 cm
4WD Length
152.375 inches 387 cm
Width
80.625 inches*Minimum width 204 cm
Height (steering wheel)
85.5 inches 217 cm
Operating weight
9,600 lbs 4354 kg
Ballasted weight
13,250 lbs 6010 kg
2WD Ground clearance
25.5 inches 64 cm
4WD Ground clearance
13.5 inches 34 cm
2WD Front tread
61.5 to 87.5 inches 156 to 222 cm
4WD Front tread
60/70.75/80 inches 152/179/203 cm
Rear tread
57 to 119.5 inches 144 to 303 cm

Tests

Nebraska Tractor Test 1057
Diesel 18-speed 2WD October 14 - 27, 1970 Link: Nebraska Tractor Test 1057 file
PTO performance
Power at rated engine speed
86.93 hp 64.8 kW
Fuel use
6.7 gal/hour 25.4 l/hour
Drawbar performance
Max power
73.87 hp 55.1 kW
Fuel use
6.6 gal/hour 25.0 l/hour
Gear 3-direct used for power test.
Max pull
10,549 lbs 4785 kg
Gear 2-under used for pull test.

Photos

Oliver 1755

Oliver 1755
