oliver 1850
 | 1964 - 1969
50 SeriesRow-Crop tractor | 1964 - 1969 | 50 Series | Row-Crop tractor |
|---|---|---|---|---|
1964 - 1969 | ||||
50 Series | ||||
Row-Crop tractor | ||||
1964 - 1969 | |
|---|---|
50 Series | |
Row-Crop tractor |
Engine options | |
|---|---|
Waukesha-Oliver 5.1L 6-cyl gasoline | |
Perkins 5.8L 6-cyl diesel | |
Waukesha-Oliver 5.1L 6-cyl LP Gas |
Engine Detail | |
|---|---|
Waukesha-Oliver | |
gasoline | |
6-cylinder | |
liquid-cooled | |
Displacement | 310 ci
5.1 L |
Bore/Stroke | 3.875x4.375 inches
98 x 111 mm |
Air cleaner | dry with precleaner |
Compression | 8.5:1 |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 8 qts
7.6 L |
Coolant capacity | 20 qts
18.9 L |
Engine Detail | |
|---|---|
Perkins | |
diesel | |
6-cylinder | |
liquid-cooled | |
The 354 Perkins diesel in the Oliver 1850 was initially listed as a 352. | |
Displacement | 354 ci
5.8 L |
Bore/Stroke | 3.88x5.00 inches
99 x 127 mm |
Air cleaner | dry with pre-cleaner |
Compression | 16:1 |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 12 qts
11.4 L |
Coolant capacity | 20 qts
18.9 L |

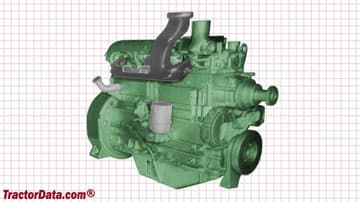

Oliver 1850 Engine | |
|---|---|
 |
Engine Detail | |
|---|---|
Waukesha-Oliver | |
LP Gas | |
6-cylinder | |
liquid-cooled | |
Displacement | 310 ci
5.1 L |
Bore/Stroke | 3.875x4.375 inches
98 x 111 mm |
Compression | 9:1 |
Starter volts | 12 |
Oil capacity | 8 qts
7.6 L |
Coolant capacity | 20 qts
18.9 L |
