Oliver 2270

The Oliver 2270 is a tractor produced by Oliver. It is equipped with a 504 ci 8.3 L engine. The rated power output is 142.62 hp 106.4 kW. Transmission: Hydraul-Shift. Operating weight: 17,100 lbs 7756 kg.

Overview

Series map: 18702270107.8hp*163.3hp**Estimated engine power for comparison only.

Note: the Oliver model 2270 is the same as the Minneapolis-Moline G1355. The following data is from the G1355 listing.

Production
Manufacturer	Oliver
Built in Charles City, Iowa, USA
Original price was $11,600 in 1972

Oliver 2270 Power
PTO (claimed)	147 hp (diesel) 109.6 kW
	135 hp (LP-gas) 100.7 kW
Drawbar (tested)	125.66 hp 93.7 kW
PTO (tested)	142.62 hp 106.4 kW
Performance test details ...

Mechanical
Two-wheel drive
Final drives	planetary
Power steering
Dry disc brakes
Open operator station. Cab optional with available air-conditioning.

Hydraulics
Type	closed center
Pump flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	III/II
Rear lift	6000 lbs 2721 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	111 inches 281 cm
Weight	17,100 lbs 7756 kg
Front tire	11.00-16
Rear tire	18.4-38
Full dimensions and tires ...

Engine

Series map: 18702270107.8hp*163.3hp**Estimated engine power for comparison only.

Note: the Oliver model 2270 is the same as the Minneapolis-Moline G1355. The following data is from the G1355 listing.

Engine options
Minneapolis-Moline 9.6L 6-cyl diesel
Minneapolis-Moline 8.3L 6-cyl LP-gas

Engine Detail — 585 ci / 9.6 L Diesel

Manufacturer	Minneapolis-Moline
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	585 ci 9.6 L
Bore/Stroke	4.75x5.50 inches 121 x 140 mm
Air cleaner	dry
Compression	15.3:1
Rated RPM	2200
Starter volts	12
Oil capacity	14 qts 13.2 L
Coolant capacity	33 qts 31.2 L

Engine Detail — 504 ci / 8.3 L

Manufacturer	Minneapolis-Moline
Configuration	6-cylinder, liquid-cooled
LP-gas
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Air cleaner	dry
Compression	8.8:1
Rated RPM	2200
Starter volts	12
Oil capacity	12 qts 11.4 L
Coolant capacity	30 qts 28.4 L

Transmission

Series map: 18702270107.8hp*163.3hp**Estimated engine power for comparison only.

Note: the Oliver model 2270 is the same as the Minneapolis-Moline G1355. The following data is from the G1355 listing.

Transmission options
6-speed gear
18-speed three-range power shift

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Clutch	355.6mm dry disc
Oil capacity	43 qts 40.7 L
With 18.4-38 rear tires.

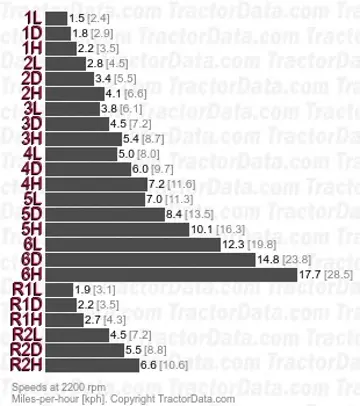

Transmission — Hydraul-Shift

Transmission	Hydraul-Shift
Type	three-range power shift
Gears	18 forward and 6 reverse
Clutch	355.6mm dry disc
With 18.4-38 rear tires.

Dimensions

Series map: 18702270107.8hp*163.3hp**Estimated engine power for comparison only.

Note: the Oliver model 2270 is the same as the Minneapolis-Moline G1355. The following data is from the G1355 listing.

Oliver 2270 Tires
Ag front	11.00-16
Ag rear	18.4-38
Ag front	14.00L-16.1
Ag rear	23.1-34
	20.8-38

Dimensions
Wheelbase	111 inches 281 cm
Length	183 inches 464 cm
Width	81.5 inches 207 cm
Height (steering wheel)	85.5 inches 217 cm
Height (exhaust)	99 inches 251 cm
Operating weight	17,100 lbs (18.4-38 duals) 7756 kg
Ballasted weight	18,070 lbs 8196 kg
Clearance (front axle)	20.5 inches 52 cm
Front tread	61 to 85 inches 154 to 215 cm
Rear tread	61 to 91 inches 154 to 231 cm

Tests

Series map: 18702270107.8hp*163.3hp**Estimated engine power for comparison only.

Note: the Oliver model 2270 is the same as the Minneapolis-Moline G1355. The following data is from the G1355 listing.

Nebraska Tractor Test 1141
Diesel 18-speed 2WD September 4 - 17, 1973 Link: Nebraska Tractor Test 1141 file
PTO performance
Power at rated engine speed	142.62 hp 106.4 kW
Fuel use	9.4 gal/hour 35.6 l/hour
Drawbar performance
Max power	125.66 hp 93.7 kW
Fuel use	9.2 gal/hour 34.8 l/hour
Gear 4-Direct used for power test.
Max pull	14,178 lbs 6431 kg
Gear 2-Direct used for pull test.
