Oliver 60 Row-Crop

The Oliver 60 Row-Crop is a tractor produced by Oliver. It is equipped with a 120.6 ci 2.0 L engine. Transmission: 6 forward and 2 reverse. Operating weight: 2500 lbs 1134 kg.

Fuel & Capacities

Gasoline

Transmission

6 forward and 2 reverse

Operating Weight

2500 lbs 1134 kg

Overview

	1940 - 1948 Row-Crop tractor

Production
Manufacturer	Oliver
Row-Crop tractor
Built in Charles City, Iowa, USA
Original price was $1,700 in 1948
The Oliver 60 was sold in Canada as the Cockshutt 60.

Variants
60 Row-Crop	tricycle front
60 Standard	fixed front tread

Oliver 60 Engine
Oliver 2.0L 4-cyl gasoline
Engine details ...

Oliver 60 Power
PTO (claimed)	18 hp 13.4 kW
Plows	1-2
Drawbar (tested)	16.92 hp 12.6 kW
Belt (tested)	18.76 hp 14.0 kW
Performance test details ...

Mechanical
Two-wheel drive
Manual steering
Differential contracting band brakes
Open operator station.

Power Take-off (PTO)
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	85.5 inches 217 cm
Weight	2500 lbs 1134 kg
Front tire	5.00-15
Rear tire	9-32
Full dimensions and tires ...

Belt Pulley
Diameter	10 inches 25 cm
Width	6.25 inches 15 cm
RPM	1143
Speed	3000 ft/min 914.40 meters/min

References

The New Oliver 60 published in 1941

Engine

Engine Detail — 120.6 ci / 2.0 L Gasoline

Manufacturer	Oliver
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	120.6 ci 2.0 L
Bore/Stroke	3.3125x3.50 inches 84 x 89 mm
Fuel system	Marvel-Schebler TSX-49 carburetor
Air cleaner	oil bath
Rated RPM	1500
Starter type	hand-crank
	electric OptOptional

Transmission

Transmission options
4-speed unsynchronized gear
6-speed

Transmission — 4 forward and 1 reverse unsynchronized gear

Type	unsynchronized gear
Gears	4 forward and 1 reverse
Clutch	dry disc

Transmission — 6 forward and 2 reverse

Gears

6 forward and 2 reverse

Dimensions

Oliver 60 Tires
Ag front	5.00-15
Ag rear	9-32

Dimensions
Wheelbase	85.5 inches 217 cm
Length	128 inches 325 cm
Width	79.25 inches 201 cm
Height (hood)	56.75 inches 144 cm
Operating weight	2500 lbs 1134 kg
Ballasted weight	4000 lbs 1814 kg
Front tread	6.5 inches 16 cm
Rear tread	60 to 88 inches 152 to 223 cm

Tests

Nebraska Tractor Test 375
Gasoline 4-speed 2WD September 10 - 23, 1941 Link: Nebraska Tractor Test 375 file
Belt power (max)	18.76 hp 14.0 kW
Belt fuel use (max)	1.6 gal/hour 6.1 l/hour
Drawbar performance
Max power	16.92 hp 12.6 kW
Gear 3 used for power test.
Max pull	2,496 lbs 1132 kg
Gear 1 used for pull test.

Photos

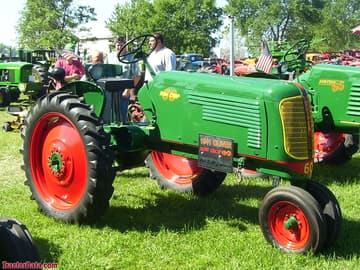

Oliver 60 row-crop tractor, left side.

Oliver 60 row-crop tractor, right side.

Oliver 60 operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Oliver 60 Row-Crop.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
