Oliver 600
The Oliver 600 is a tractor produced by Oliver. It is equipped with a 185.8 ci 3.0 L engine. Transmission: 6 forward and 2 reverse. Operating weight: 4312 lbs 1955 kg.
Fuel & Capacities
11.5 gal
43.5 L
Transmission
6 forward and 2 reverse
Operating Weight
4312 lbs
1955 kg
Overview
 | 1962 - 1964
Utility tractorDavid Brown built
Utility tractor
David Brown built |
|---|
Production | |
|---|---|
Distributor | Oliver |
Manufacturer | David Brown |
Utility tractor | |
Built in Meltham Mills, Huddersfield, England | |
Variants | |
|---|---|
990 | similar David Brown model |
Oliver 600 Engine | |
|---|---|
David Brown 3.0L 4-cyl diesel | |
Fuel tank | 11.5 gal
43.5 L |
Engine details ...  | |
Oliver 600 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Oliver 600 Power | |
|---|---|
Drawbar (claimed) | 43 hp
32.1 kW |
PTO (claimed) | 48 hp
35.8 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live *Two-stage clutch |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 76.75 inches
194 cm |
Weight | 4312 lbs
1955 kg |
Front tire | 6.00-16 |
Rear tire | 14.9/13-28 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Diesel Tractors: 2-3 Plow 500 - New 3-4 Plow 600 published in 1963, by Oliver |
Engine
Engine Detail — 185.8 ci / 3.0 L Diesel
Manufacturer | David Brown |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 185.8 ci
3.0 L |
Bore/Stroke | 3.62x4.50 inches
92 x 114 mm |
Air cleaner | oil bath |
Compression | 17:1 |
Rated RPM | 2200 |
Idle RPM | 700-2200 |
Starter volts | 12 |
Oil capacity | 3.25 qts
3.1 L |
Coolant capacity | 12 qts
11.4 L |
Transmission
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
With 13-28 rear tires. | |
 | |
Dimensions
Oliver 600 Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 14.9/13-28 |
Ag front | 7.50-16 |
Ag rear | 11-32 |
14-30 | |
Dimensions | |
|---|---|
Wheelbase | 76.75 inches
194 cm |
Length | 118 inches
299 cm |
Width | 64 inches
162 cm |
Height (hood) | 56 inches
142 cm |
Weight | 4312 lbs
1955 kg |
Clearance (front axle) | 20 inches
50 cm |
Front tread | 52 to 76 inches
132 to 193 cm |
Rear tread | 52 to 76 inches
132 to 193 cm |
Photos

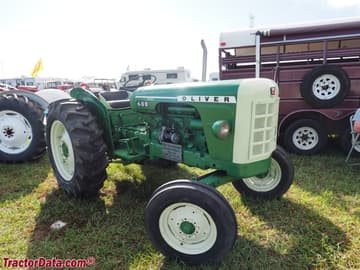

Oliver 600
Oliver 600
Oliver 600 operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Oliver 600.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Oliver 600 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Oliver 600.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
