oliver 77
 | 1948 - 1954
Fleetline SeriesRow-Crop tractor | 1948 - 1954 | Fleetline Series | Row-Crop tractor |
|---|---|---|---|---|
1948 - 1954 | ||||
Fleetline Series | ||||
Row-Crop tractor | ||||
1948 - 1954 | |
|---|---|
Fleetline Series | |
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 404: gasoline 6-speed 2WD | |
NTTL 425: gasoline 6-speed 2WD | |
NTTL 457: diesel 6-speed 2WD | |
NTTL 470: LP gas 6-speed 2WD |

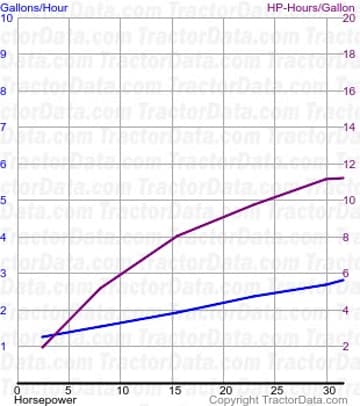

Nebraska Tractor Test 404 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 404 | |
|---|---|
Gasoline 6-speed 2WD
October 21 - November 9, 1948
Link: Nebraska Tractor Test 404 file | |
Belt power (max) | 33.98 hp
25.3 kW |
Belt fuel use (max) | 3.0 gal/hour
11.4 l/hour |
Drawbar performance | |
Max power | 28.68 hp
21.4 kW |
Gear 3 used for power test. | |
Max pull | 4,076 lbs
1848 kg |
Gear 1 used for pull test. | |

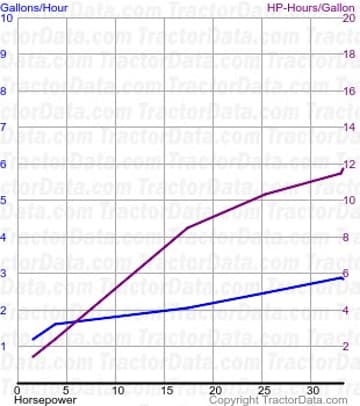

Nebraska Tractor Test 425 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 425 | |
|---|---|
Gasoline 6-speed 2WD
September 23 - 29, 1949
Link: Nebraska Tractor Test 425 file | |
Belt power (max) | 37.17 hp
27.7 kW |
Belt fuel use (max) | 3.5 gal/hour
13.2 l/hour |
Drawbar performance | |
Max power | 32.89 hp
24.5 kW |
Gear 3 used for power test. | |
Max pull | 4,714 lbs
2138 kg |

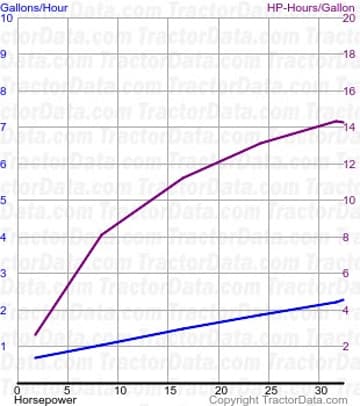

Nebraska Tractor Test 457 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 457 | |
|---|---|
Diesel 6-speed 2WD
May 21 - 28, 1951
Link: Nebraska Tractor Test 457 file | |
Belt power (max) | 35.79 hp
26.7 kW |
Belt fuel use (max) | 2.5 gal/hour
9.5 l/hour |
Drawbar performance | |
Max power | 30.43 hp
22.7 kW |
Gear 3 used for power test. | |
Max pull | 4,818 lbs
2185 kg |
Gear 1 used for pull test. | |

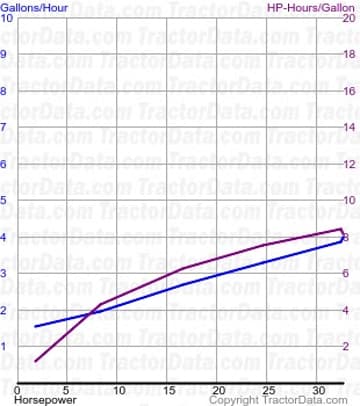

Nebraska Tractor Test 470 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 470 | |
|---|---|
LP gas 6-speed 2WD
April 28 - May 10, 1952
Link: Nebraska Tractor Test 470 file | |
Belt power (max) | 36.33 hp
27.1 kW |
Belt fuel use (max) | 4.6 gal/hour
17.4 l/hour |
Drawbar performance | |
Max power | 32.26 hp
24.1 kW |
Gear 3 used for power test. | |
Max pull | 4,778 lbs
2167 kg |
Gear 1 used for pull test. | |
