Oliver 880

The Oliver 880 is a tractor produced by Oliver. It is equipped with a 265.1 ci 4.3 L engine. Transmission: Power-Booster. Operating weight: 5640 lbs 2558 kg.

Fuel & Capacities
Diesel
Transmission
Power-Booster
Operating Weight
5640 lbs 2558 kg

Overview

Oliver 880 tractor photo
1958 - 1963 Row-Crop tractor
Production
Manufacturer
Oliver
Row-Crop tractor
Built in Charles City, Iowa, USA
Original price was $5,000 in 1963
Variants
880
row-crop
880 Wheatland
standard
880 High-Crop
high-clearance
Oliver 880 Power
Drawbar (claimed)
42 hp 31.3 kW
PTO (claimed)
55 hp 41.0 kW
Plows
3 16-inch or 4 14-inch
Drawbar (tested)
54.92 hp 41.0 kW
Belt (tested)
61.86 hp 46.1 kW
Performance test details ...
Mechanical
Two-wheel drive
Manual steering
Differential mechanical disc brakes
Open operator station.
Tractor hitch
Rear Type
II/I
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540
Dimensions & Tires
Wheelbase
94 inches 238 cm
Weight
5640 lbs 2558 kg
Front tire
6.50-16
Rear tire
14.00-34
Full dimensions and tires ...

Engine

Engine options
Waukesha-Oliver 4.3L 6-cyl gasoline
Waukesha-Oliver 4.3L 6-cyl diesel

Engine Detail — 265.1 ci / 4.3 L Gasoline

Manufacturer
Waukesha-Oliver
Configuration
6-cylinder, liquid-cooled vertical I-head
nautral gasoline
Displacement
265.1 ci 4.3 L
Bore/Stroke
3.75x4.00 inches 95 x 102 mm
Air cleaner
oil bath
Compression
7.3:1
Rated RPM
1750
Firing order
1-5-3-6-2-4
Starter volts
12
Oil capacity
8 qts 7.6 L
Coolant capacity
18 qts 17.0 L

Engine Detail — 265.1 ci / 4.3 L Diesel

Manufacturer
Waukesha-Oliver
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled vertical I-head
Displacement
265.1 ci 4.3 L
Bore/Stroke
3.75x4.00 inches 95 x 102 mm
Air cleaner
oil bath
Compression
16:1
Rated RPM
1750
Firing order
1-5-3-6-2-4
Starter volts
12

Transmission

Transmission options
6-speed constant mesh
12-speed two-speed power shift

Transmission — 6 forward and 2 reverse constant mesh

Type
constant mesh
Gears
6 forward and 2 reverse
Clutch
dry disc
880 constant mesh speeds

Transmission — Power-Booster

Transmission
Power-Booster
Type
two-speed power shift
Gears
12 forward and 4 reverse

Dimensions

Oliver 880 Tires
Ag front
6.50-16
Ag rear
14.00-34
Dimensions
Wheelbase
94 inches 238 cm
Length
144 inches 365 cm
Width
92 inches 233 cm
Operating weight
5640 lbs 2558 kg
Ballasted weight
10845 lbs 4919 kg
Front tread
8.1/12.1 inches 20/30 cm
Rear tread
60 to 92.5 inches 152 to 234 cm

Tests

Tractor Tests
NTTL 647: gasoline 6-speed 2WD
NTTL 650: diesel 6-speed 2WD
Nebraska Tractor Test 647
Gasoline 6-speed 2WD April 21 - May 1, 1958 Link: Nebraska Tractor Test 647 file
Belt power (max)
61.86 hp 46.1 kW
Belt fuel use (max)
5.4 gal/hour 20.4 l/hour
Drawbar performance
Max power
54.92 hp 41.0 kW
Gear 4 used for power test.
Max pull
7,998 lbs 3627 kg
Gear 1 used for pull test.
Nebraska Tractor Test 650
Diesel 6-speed 2WD April 23 - May 7, 1958 Link: Nebraska Tractor Test 650 file
Belt power (max)
59.48 hp 44.4 kW
Belt fuel use (max)
4.0 gal/hour 15.1 l/hour
Drawbar performance
Max power
50.88 hp 37.9 kW
Gear 4 used for power test.
Max pull
8,118 lbs 3682 kg
Gear 1 used for pull test.

Photos

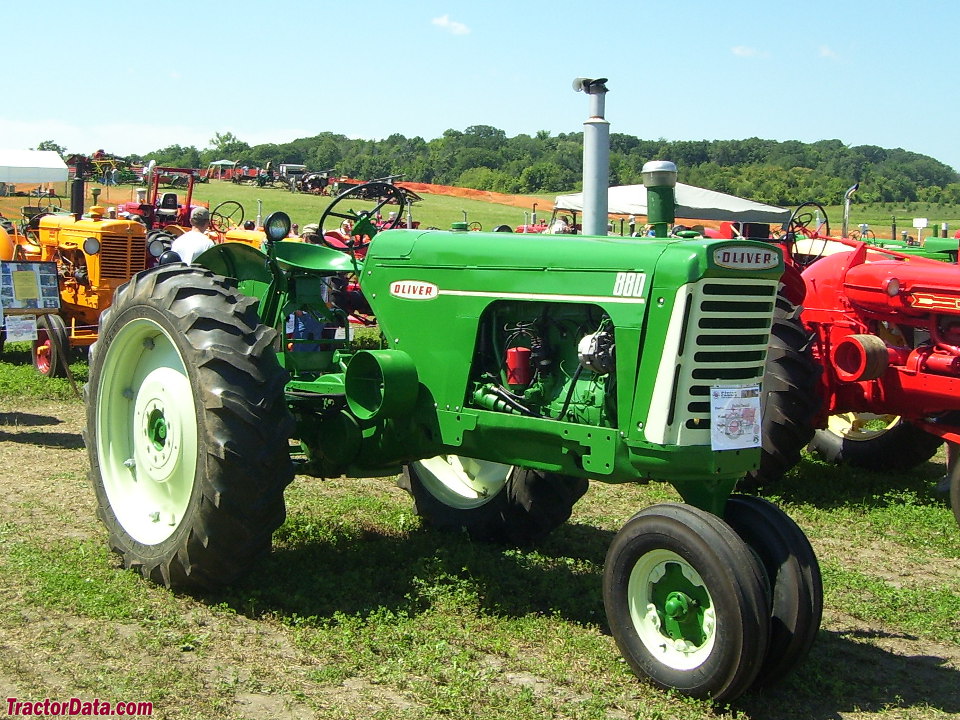

Row-crop Oliver 880 with tricycle front end.

Row-crop Oliver 880 with tricycle front end.

Row-crop Oliver 880 with diesel engine and wide front end.

Row-crop Oliver 880 with diesel engine and wide front end.

Row-crop Oliver 880 with gasoline engine and wide front end.

Row-crop Oliver 880 with gasoline engine and wide front end.

Row-crop Oliver 880 with gasoline engine and wide front end.

Row-crop Oliver 880 with gasoline engine and wide front end.

Row-crop Oliver 880 with LP-gas engine.

Row-crop Oliver 880 with LP-gas engine.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Oliver 880.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Oliver 880 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Oliver 880.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
