Parrett E 10-20
The Parrett E 10-20 is a tractor produced by Parrett. It is equipped with a 312 ci 5.1 L engine. Transmission: 2 forward and 1 reverse. Operating weight: 5,000 lbs 2268 kg.
Fuel & Capacities
18 gal
68.1 L
Transmission
2 forward and 1 reverse
Operating Weight
5,000 lbs
2268 kg
Overview
 | 1915 - 1917 |
|---|
Production | |
|---|---|
Manufacturer | Parrett |
Built in Chicago, Illinois, USA | |
Parrett E 10-20 Engine | |
|---|---|
Buda 5.1L 4-cyl kerosene | |
Fuel tank | 18 gal
68.1 L |
Engine details ...  | |
Parrett E 10-20 Transmission | |
|---|---|
2-speed unsynchronized gear | |
Transmission details ...  |
Parrett E 10-20 Power | |
|---|---|
Drawbar (claimed) | 10 hp
7.5 kW |
Belt (claimed) | 20 hp
14.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Four-post canopy. | |
Dimensions & Tires | |
|---|---|
Weight | 5,000 lbs
2268 kg |
Rear tire | 60x10 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 15 inches
38 cm |
Width | 7 inches
17 cm |
Engine
Engine Detail — 312 ci / 5.1 L Kerosene
Manufacturer | Buda |
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 312 ci
5.1 L |
Bore/Stroke | 4.25x5.50 inches
108 x 140 mm |
Fuel system | Kingston carburetor |
Rated RPM | 900 |
Coolant capacity | 20 qts
18.9 L |
Transmission
Transmission — 2 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 2 forward and 1 reverse |
 | |
Dimensions
Parrett E 10-20 Tires | |
|---|---|
Ag rear | 60x10 steel |
Dimensions | |
|---|---|
Length | 108 inches
274 cm |
Width | 72 inches
182 cm |
Height | 96 inches
243 cm |
Weight | 5,000 lbs
2268 kg |
Rear axle | 2.625 inch diameter
66 mm |
Photos

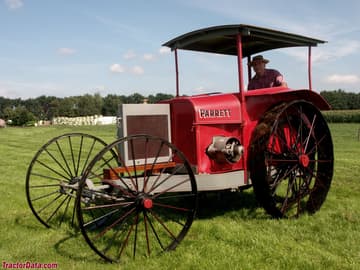

Parrett E 10-20
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Parrett E 10-20.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
