Parrett H 12-25

The Parrett H 12-25 is a tractor produced by Parrett. It is equipped with a 312 ci 5.1 L engine. Transmission: 2 forward and 1 reverse. Operating weight: 5,200 lbs 2358 kg.

Overview

	1918 - 1920

Production
Manufacturer	Parrett
Built in Chicago, Illinois, USA

Parrett H 12-25 Engine
Buda 5.1L 4-cyl kerosene
Engine details ...

Parrett H 12-25 Transmission
2-speed unsynchronized gear
Transmission details ...

Parrett H 12-25 Power
Drawbar (claimed)	12 hp 8.9 kW
Belt (claimed)	25 hp 18.6 kW
Plows	3 (14-inch)

Mechanical
Two-wheel drive
Open operator station.

Dimensions & Tires
Weight	5,200 lbs 2358 kg
Rear tire	60x10
Full dimensions and tires ...

Belt Pulley
Diameter	12 inches 30 cm
Width	7.5 inches 19 cm
RPM	1000
Speed	3,141.6 ft/min 957.56 meters/min

Engine

Engine Detail — 312 ci / 5.1 L Kerosene

Manufacturer	Buda
Fuel Type	Kerosene
Configuration	4-cylinder, liquid-cooled
Displacement	312 ci 5.1 L
Bore/Stroke	4.25x5.50 inches 108 x 140 mm
Fuel system	Kingston 1.25-inch carburetor
Air cleaner	water bath

Transmission

Transmission — 2 forward and 1 reverse unsynchronized gear

Type	unsynchronized gear
Gears	2 forward and 1 reverse

Dimensions

Parrett H 12-25 Tires
Ag rear	60x10 steel

Dimensions
Length	146 inches 370 cm
Width	72 inches 182 cm
Height	67 inches 170 cm
Weight	5,200 lbs 2358 kg

Photos

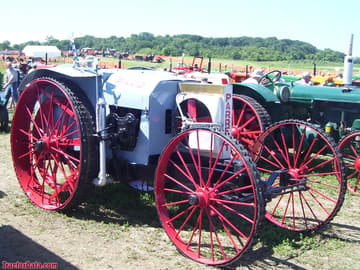

Parrett H 12-25

Parrett H 12-25
