Pasquali 988

The Pasquali 988 is a tractor produced by Pasquali. It is equipped with a 81.3 ci 1.3 L engine. The listed engine power is Diesel (listed): 38 hp / 28.3 kW. Transmission: 9 forward and 3 reverse. Operating weight: 2024 lbs 918 kg.

Overview

Production
Manufacturer	Pasquali
Built in Italy

Pasquali 988 Engine
Lombardini 1.3L 2-cyl diesel
Engine details ...

Pasquali 988 Transmission
9-speed gear
Transmission details ...

Pasquali 988 Power
Engine	38 hp 28.3 kW

Mechanical
Four-wheel drive
Open operator station.

Hydraulics
Type	open center

Tractor hitch
Rear Type	I
Control	position control

Power Take-off (PTO)
Rear PTO Type	540/750

Dimensions & Tires
Wheelbase	46.5 inches 118 cm
Weight	2024 lbs 918 kg
Front tire	7.50x16
Rear tire	7.50x16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	92

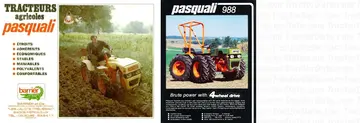

References
Tracteurs agricoles published by Pasquali
988 published by Pasquali

Engine

Engine Detail — 81.3 ci / 1.3 L Diesel

Manufacturer	Lombardini
Fuel Type	Diesel
Configuration	2-cylinder, air-cooled
Displacement	81.3 ci 1.3 L
Bore/Stroke	3.74x3.70 inches 95 x 94 mm
Power	38 hp 28.3 kW
Rated RPM	3000
Starter	electric
Starter volts	12

Transmission

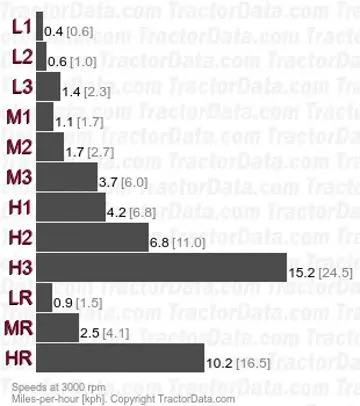

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Clutch	203.2mm dry disc
Three gears, plus reverse, in three ranges.

Dimensions

Pasquali 988 Tires
Ag front	7.50x16
Ag rear	7.50x16

Dimensions
Wheelbase	46.5 inches 118 cm
Length	96.5 inches 245 cm
Height (steering wheel)	43.5 inches 110 cm
Weight	2024 lbs 918 kg

Photos

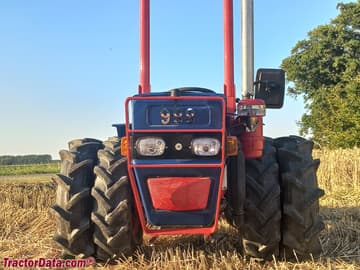

Pasquali 988

Pasquali 988

Pasquali 988
