Pasquali 977

The Pasquali 977 is a tractor produced by Pasquali. It is equipped with a 68.6 ci 1.1 L engine. The listed engine power is Diesel (listed): 35 hp / 26.1 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1,786 lbs 810 kg.

Overview

	Farm/Agricultural tractor	Farm/Agricultural tractor

Production
Manufacturer	Pasquali
Farm/Agricultural tractor
Built in Italy

Pasquali 977 Engine
Ruggerini 1.1L 2-cyl diesel
Engine details ...

Pasquali 977 Transmission
9-speed
Transmission details ...

Pasquali 977 Power
Engine	35 hp 26.1 kW

Mechanical
Four-wheel drive
Steering	manual, power optional
Mechanical brakes

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/750

Dimensions & Tires
Wheelbase	46.5 inches 118 cm
Weight	1,786 lbs 810 kg
Front tire	7.50x16
Rear tire	7.50x16
Full dimensions and tires ...

Engine

Engine Detail — 68.6 ci / 1.1 L Diesel

Manufacturer	Ruggerini
Fuel Type	Diesel
Configuration	2-cylinder, air-cooled
Displacement	68.6 ci 1.1 L
Bore/Stroke	3.64x3.68 inches 92 x 93 mm
Power	35 hp 26.1 kW
Rated RPM	3000
Starter volts	12

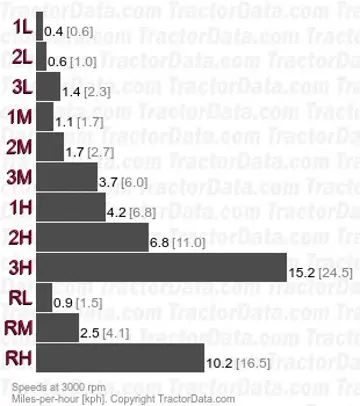

Transmission

Transmission — 9 forward and 3 reverse

Gears	9 forward and 3 reverse

Dimensions

Pasquali 977 Tires
Ag front	7.50x16
Ag rear	7.50x16

Dimensions
Wheelbase	46.5 inches 118 cm
Length	96.5 inches 245 cm
Height (steering wheel)	43.5 inches 110 cm
Weight	1,786 lbs 810 kg
Ground clearance	12 inches 30 cm
