Pennsylvania 1110 Panzer

The Pennsylvania 1110 Panzer is a tractor produced by Pennsylvania Lawn Tractors. It is equipped with a 388 cc 23.7 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: Glidematic. Operating weight: 660 lbs 299 kg.

Engine Power
Gasoline (gross): 10 hp / 7.5 kW
Fuel & Capacities
1 gal 3.8 L
Transmission
Glidematic
Operating Weight
660 lbs 299 kg

Overview

Pennsylvania 1110 Panzer tractor photo
1964 - 1969 Garden tractor
Production
Manufacturer
Pennsylvania
Garden tractor
Built in Waynesboro, Virginia, USA
Pennsylvania 1110 Engine
10HP Tecumseh 388cc 1-cyl gasoline
Fuel tank
1 gal 3.8 L
Engine details ...
Pennsylvania 1110 Transmission
1-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical drum brakes
Open operator station.
Tractor hitch
Type
sleeve hitch *Optional. Model 2AC4.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Wheelbase
44 inches 111 cm
Weight
660 lbs 299 kg
Front tire
5.30/4.50x6
Rear tire
23x8.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
starter-generator
Charging amps
6
Battery volts
12
References

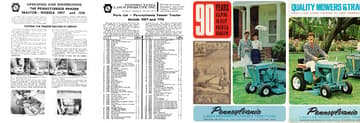

1110 Panzer references literature
Operating and Maintaining the Pennsylvania Panzer Tractor - Model 1107 and 1110 published in 1967
Parts List - Pennsylvania Panzer Tractor - Models 1107 and 1110 published in 1967
Lawn Mowers & Garden Tractors published in 1968, by Pennsylvania Lawn Products
Quality Mowers & Tractors published in 1969, by Pennsylvania Lawn Products

Engine

Engine Detail — 388 cc / 23.7 ci Gasoline

Manufacturer
Tecumseh HH100
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
388 cc 23.7 ci
Bore/Stroke
3.3125x2.75 inches 84 x 70 mm
Power (gross)
10 hp 7.5 kW
Starter
electric
Starter volts
12

Transmission

Transmission — Glidematic

Transmission
Glidematic
Type
belt-driven gear
Gears
1 forward and reverse
Clutch
belt-tension
1110 Panzer Glidematic belt-driven gear speeds

Dimensions

Pennsylvania 1110 Tires
Lawn/turf front
5.30/4.50x6
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
44 inches 111 cm
Length
62 inches 157 cm
Width
36 inches 91 cm
Weight
660 lbs 299 kg

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
36" Mower deck
Type
mid-mount Pennsylvania 11AC12
2-blade
Cutting width
36 inches 91 cm
Cut height
1 to 4 inch 2 to 10 cm

Photos

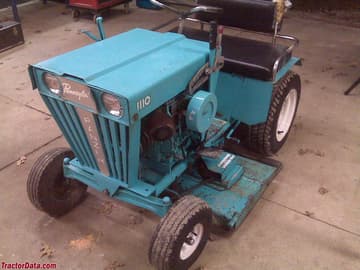

Pennsylvania 1110 Panzer

Pennsylvania 1110 Panzer

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Pennsylvania Lawn Tractors Pennsylvania 1110 Panzer.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Pennsylvania Lawn Tractors Pennsylvania 1110 Panzer Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Pennsylvania Lawn Tractors Pennsylvania 1110 Panzer.

Converted Equivalents:

Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
