Pennsylvania 900 Mini-Sabre
The Pennsylvania 900 Mini-Sabre is a tractor produced by Pennsylvania Lawn Tractors. It is equipped with a 206 cc 12.57 ci engine. The listed engine power is Gasoline (gross): 5 hp / 3.7 kW. Transmission: 1 forward and reverse. Operating weight: 184 lbs 83 kg.
Engine Power
Gasoline (gross): 5 hp / 3.7 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
1 forward and reverse
Operating Weight
184 lbs
83 kg
Overview
 | 1969
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Pennsylvania |
Riding lawn mower | |
Built in Waynesboro, Virginia, USA | |
Pennsylvania 900 Engine | |
|---|---|
5HP Briggs & Stratton 206cc 1-cyl gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Pennsylvania 900 Transmission | |
|---|---|
1-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 39.5 inches
100 cm |
Weight | 184 lbs
83 kg |
Front tire | 3.50-10 |
Rear tire | 12x3.00-7 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Operating and Maintaining the Mini-Sabre Model 900 published in 1968 | |
Parts List Mini-Sabre Model 900 published in 1968 | |
Quality Mowers & Tractors published in 1969, by Pennsylvania Lawn Products |
Engine
Engine Detail — 206 cc / 12.57 ci Gasoline
Manufacturer | Briggs & Stratton 130902 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 206 cc
12.57 ci |
Bore/Stroke | 2.56x2.44 inches
65 x 62 mm |
Power (gross) | 5 hp
3.7 kW |
Starter type | manual recoil |
Transmission
Transmission — 1 forward and reverse
Gears | 1 forward and reverse |
 | |
Dimensions
Pennsylvania 900 Tires | |
|---|---|
Lawn/turf front | 3.50-10 |
Lawn/turf rear | 12x3.00-7 |
Dimensions | |
|---|---|
Wheelbase | 39.5 inches
100 cm |
Length | 50 inches
127 cm |
Width | 25.5 inches
64 cm |
Weight | 184 lbs
83 kg |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Pennsylvania |
1-blade with manual lift | |
Cutting width | 26 inches
66 cm |
Belt | A-50 |
Cut height | 1.5 to 3.0 inch
3 to 7 cm |
Photos

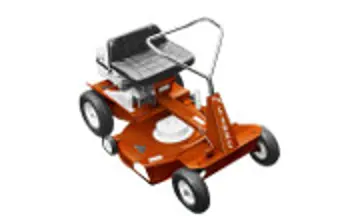

Pennsylvania 900 Mini-Sabre tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Pennsylvania Lawn Tractors Pennsylvania 900 Mini-Sabre.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Pennsylvania Lawn Tractors Pennsylvania 900 Mini-Sabre Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Pennsylvania Lawn Tractors Pennsylvania 900 Mini-Sabre.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
